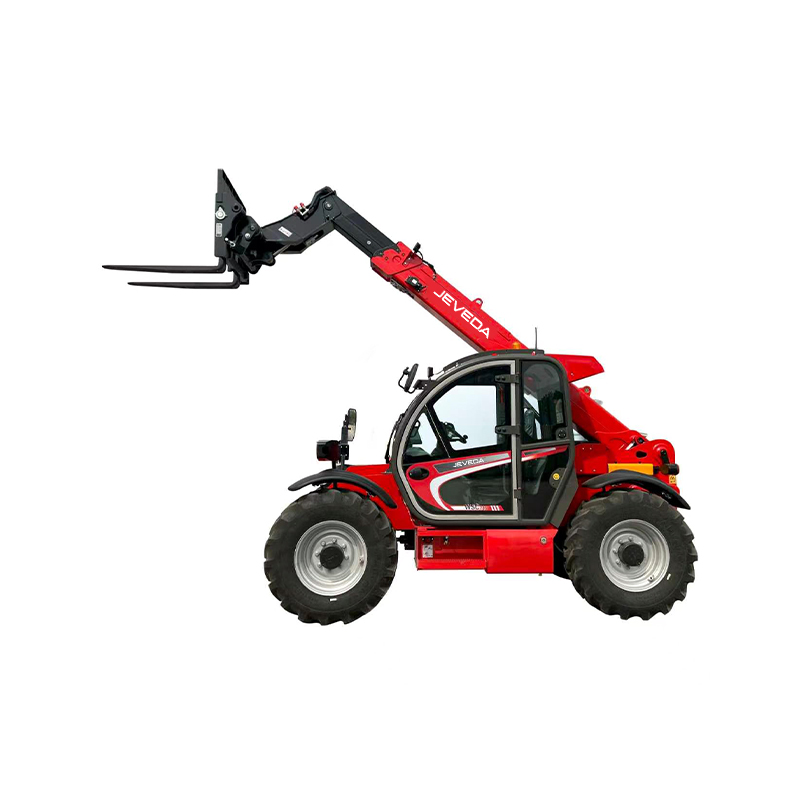

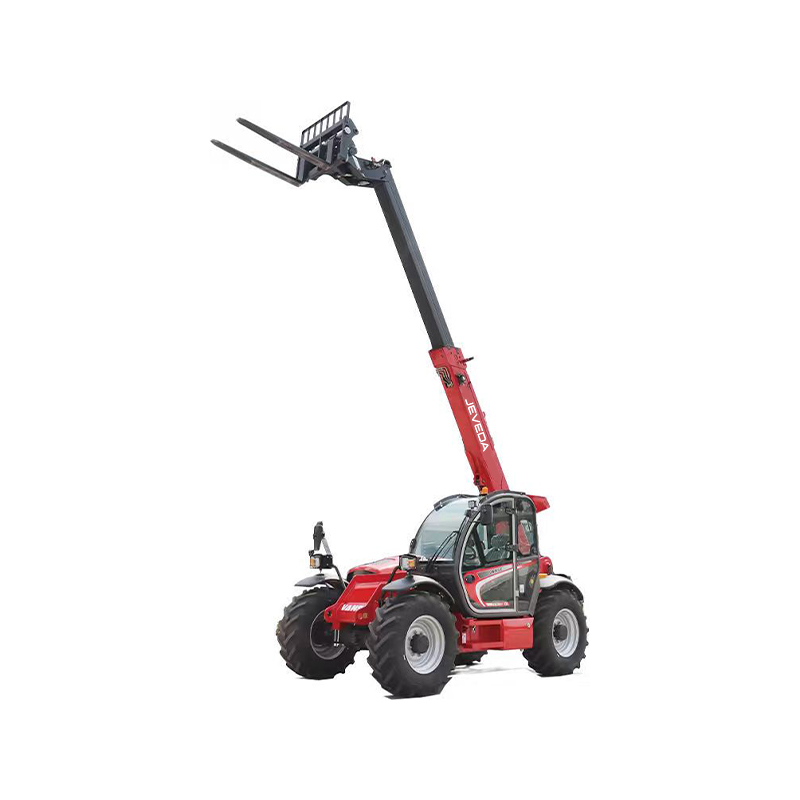

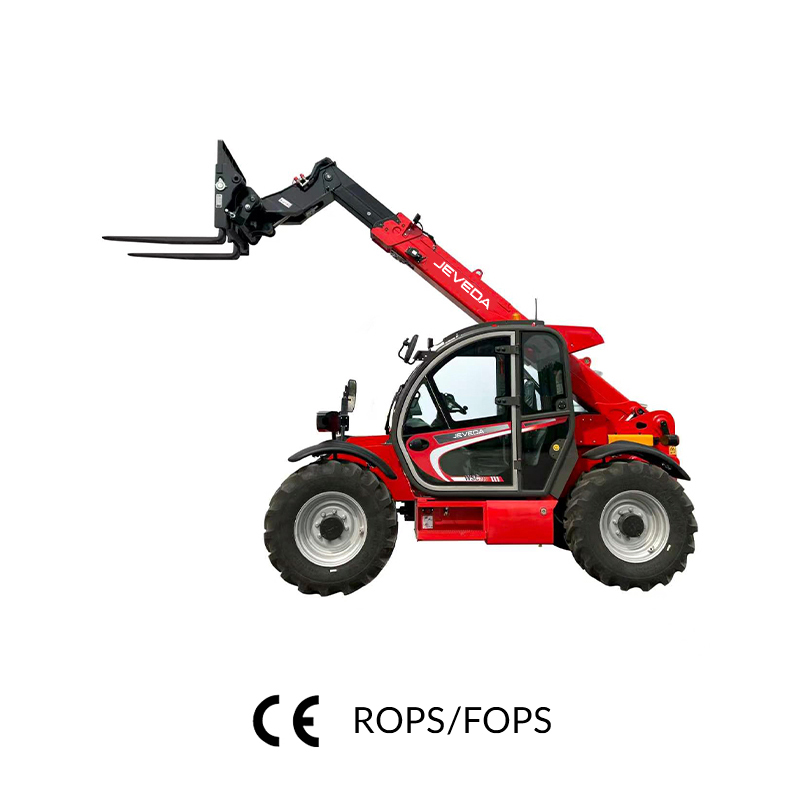

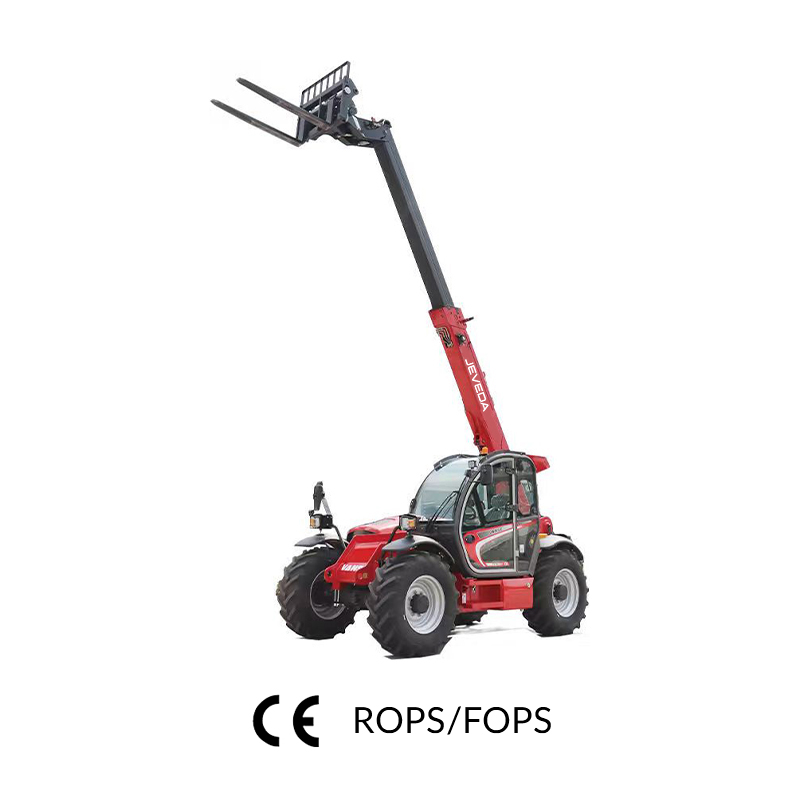

Home / Products / Telescopic Handler / JT735 All-Terrain Telescopic Handler

Custom Telescopic Handler

A telescopic handler is multi-functional construction machinery combining forklift, crane and loader capabilities. Equipped with an extendable, angle-adjustable hydraulic boom and off-road chassis, it features larger working range and better trafficability than conventional forklifts, with crane-level lifting capacity. Widely used in construction, farming and industrial logistics, this all-in-one machine is gradually replacing single-purpose equipment.

Telescopic Handler
  • PARAMETER
    Engine
    Engine Brand Cummins / EURO III Perkins / EURO V Yuchai / EURO III
    Engine Model QSB3.9-C110 904J-E36TA YCF36100-S500
    Capacity of cylinders 3.9L(238cid) 3.62L(221cid) 3.62L(221cid)
    Cooling Method Water Cooling Water Cooling Water Cooling
    Max Power 81kw /2200r(109hp/2200r) 74.4kw /2400r (100hp/2400r) 73.5kw/2200r (98.6 hp/2200r)
    Performance
    Rated load 3500KG/7716 lb
    Machine weight 7600KG/16755 lb
    Maximum lifting height 7m/22.97 ft
    Maximum outreach 3.9m/12.9 ft
    Maximum theoretical gradeability 50%
    Drive form 4WD
    Maximum travel speed 40km/h/24.85 mph
    Main boom rising time 8.2s
    Main boom lowering time 6.4s
    Telescopic arm extension time 8s
    Telescopic arm retraction time 5s
    Diesel capacity 130L
    Hydraulic oil volume 150L
    Dimension
    Overall length 5015mm/16.44 ft
    Overall width 2300mm/7.55 ft
    Overall height 2400mm/7.87 ft
    Wheelbase 2950mm/9.55 ft
    Minimum ground clearance 430mm/16.93
    Tire 460/70R24
    Main configuration
    Axles Dana/Carraro
    Gearbox Dana/Carraro
    Closed travel pump Danfoss
    Working pump Danfoss
    Travel motor Danfoss
About
Zhejiang Jeveda Machinery Co., Ltd.

Our Company is China JT735 All-Terrain Telescopic Handler Manufacturers and JT735 All-Terrain Telescopic Handler Factory. Jeveda is a company in China that focuses on the manufacturing of small construction machinery and logistics equipment. Its core products include telehandlers, skid loaders, mini excavators, forklifts and so on. The company integrates R&D, production operations, manufacturing and after-sales services to build a complete and efficient industrial chain.

Jeveda's R&D team is composed of a group of senior experts who have been deeply involved in the construction machinery industry for more than 30 years. They have rich practical experience and profound professional knowledge. These experts have been deeply involved in the research and development of many products, including excavators, loaders, forklifts, etc. They have solid achievements in the design of the whole machine, and also pay attention to the aesthetics of the product, ergonomics and the optimization of the hydraulic mechanical system, and are committed to creating high-quality construction machinery products that are both practical and beautiful and in line with ergonomic principles.

In the current era of rapid transformation in the global construction machinery industry, environmental policies are becoming increasingly strict, and energy transition is imminent. Miniaturization and electrification of construction machinery have become a new trend in industry development. Jeveda has precisely targeted this field, focusing on the miniaturization and electrification of construction machinery and forklifts, and strives to be a competitive global supplier of overall solutions for miniaturized construction machinery.
