Home / Products / Telescopic Handler / JT1440 Telehandler

Custom Telescopic Handler

A telescopic handler is multi-functional construction machinery combining forklift, crane and loader capabilities. Equipped with an extendable, angle-adjustable hydraulic boom and off-road chassis, it features larger working range and better trafficability than conventional forklifts, with crane-level lifting capacity. Widely used in construction, farming and industrial logistics, this all-in-one machine is gradually replacing single-purpose equipment.

Telescopic Handler

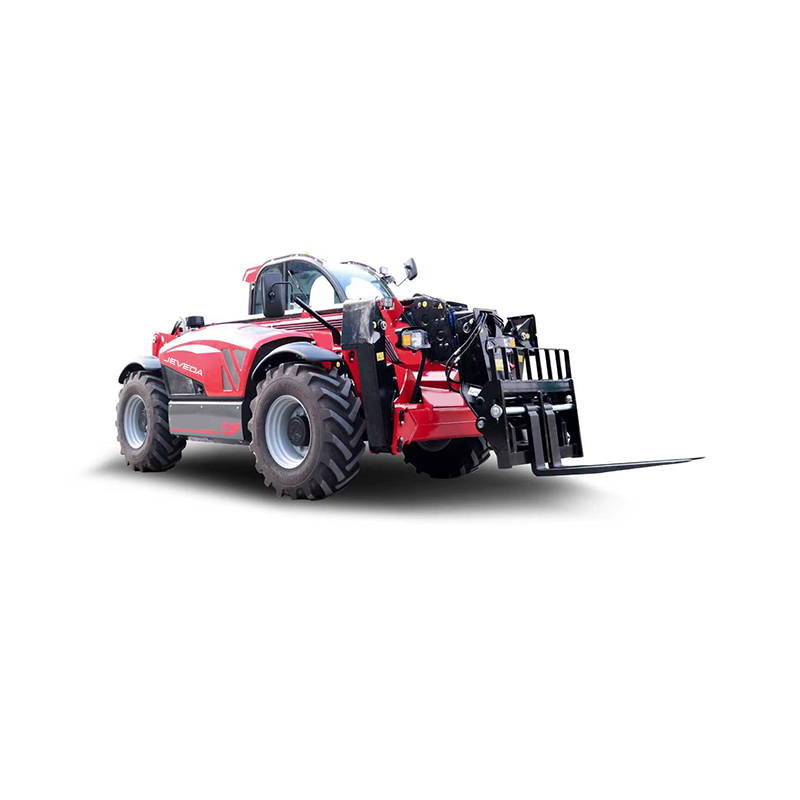

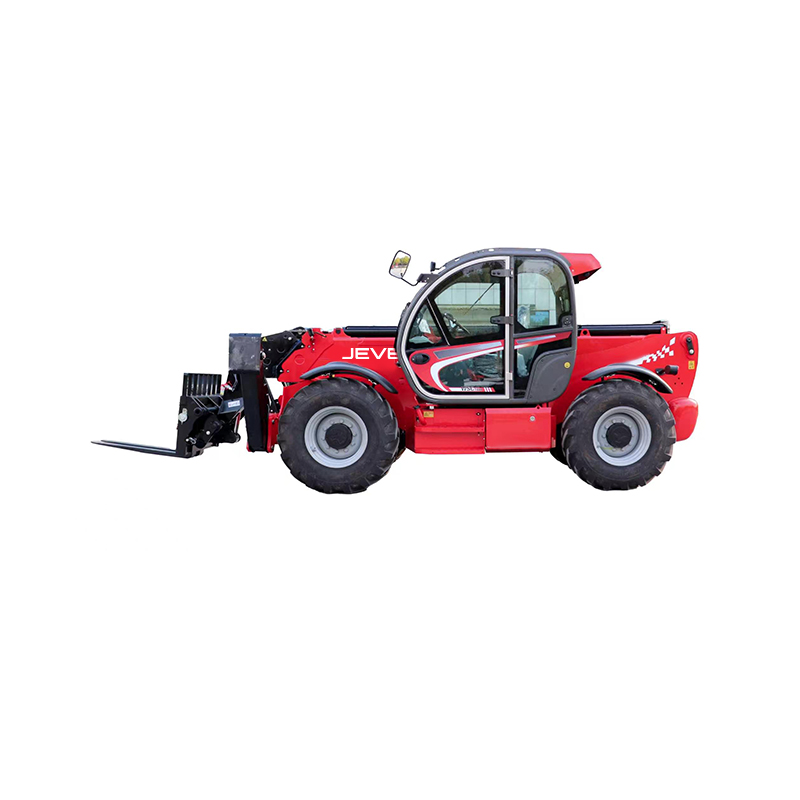

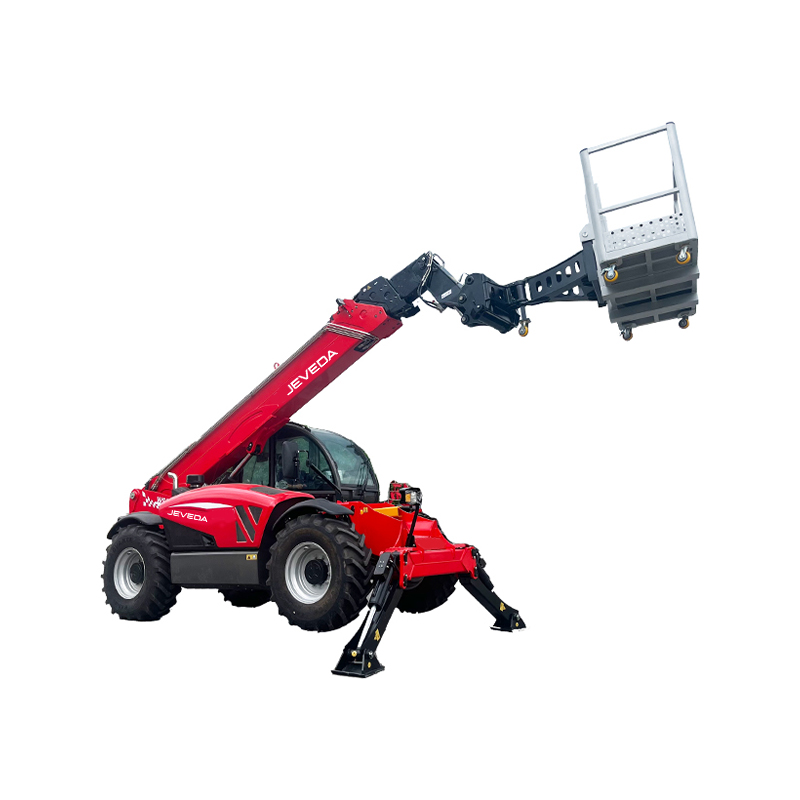

JT1440 Telehandler

The JT1440 Telehandler is a high-performance material handling machine designed for demanding lifting and loading applications. Combining excellent lifting capacity, extended reach, and reliable operation, it is widely used in construction sites, industrial facilities, agriculture, and logistics operations.

Key Features
Powerful Lifting Performance
Designed to handle heavy materials with ease, providing stable lifting capacity for a wide range of job site applications.
Extended Reach Capability
The telescopic boom allows operators to lift and place materials at greater heights and distances, improving work efficiency.
Excellent Maneuverability
Compact design and flexible steering enable smooth operation in confined spaces and challenging working environments.
Operator Comfort and Safety
Equipped with a spacious cab, ergonomic controls, and excellent visibility to enhance operator comfort while ensuring safe operation.
Durable and Low-Maintenance Design
Built with high-quality components and a robust frame, the JT1440 Telehandler delivers long service life while minimizing maintenance requirements.

Typical Applications
Construction material handling
Warehouse and logistics operations
Agricultural loading and transportation
Industrial lifting tasks
Infrastructure and municipal projects

ASK FOR A QUOTE
  • PARAMETER
    Engine
    Engine Brand Cummins / EURO III Perkins / EURO V Yuchai / EURO V
    Engine Model QSB3.9-C110 904J-E36TA YCF36100-S500
    Capacity of cylinders 3.9 L(238 cid) 3.62L(221cid) 3.62L(221cid)
    Cooling Method Water Cooling Water Cooling Water Cooling
    Max Power 81kw/2200r(109hp/2200r) 74.4kw/2400r (100hp/2400r) 74kw/2200r(99 hp/2200r)
    Max Torque 480 Nm(354 lb-ft) 430 Nm(317 Ib-ft) 420 Nm(310 Ib-ft)
    Traction Force 70.5 KN 70.5 KN 70.5 KN
    Capability
    Max Capacity 4000kg /8818 lb
    Max Lifting Height 13.5 m/44.29 ft
    Max Outreach 9.5 m/31.17 ft
    Breakout Force with Bucket 7500 daN/16861 Ibf
    Lift Capacity at Maximum height 3000 kg/6614 lb
    Lift Capacity at Maximum reach 1650 kg/3638 Ib
    Performance
    Lifting 11s - 17.5s
    Lowering 16s -23.5s
    Extension 15s-22.5s
    Retraction 11s - 18s
    Transmission
    Travel Speed 0-30km/h/0-19 mph
    Gradeability 30°
    Drive Mode 4WD
    Number of Gears (forward/reverse) 2/2
    Parking Brake Automatic parking
    Service Brake Wet Brake
    Tank
    Fuel Tank 140 L/37.0 US gal
    Hydraulic Oil 180 L/47.6 US gal
    Fork
    Forks Length/ Width/ Section 1200x150x50 mm/ /47.24"x5.91"x1.97"
    Tilt-Up Angle 16°
    Tilt-Down Angle 117°
    Weight
    Machine Weight (with forks) 10800kq/23809lb
    Dimension
    Overall Length to Carriage 6.08 m/19.95 ft
    Overall Width 2.42 m/7.94 ft
    Overall Height 2.7 m/8.86 ft
    Wheelbase 3.07 m/10.07 ft
    Front Track 1.96 m/6.43 ft
    Ground Clearance 0.43 m /16.93 inch
    Tilt Angle Of frame(L&R) ±9°
    Turning radius 4.2 m/13.78 ft
    Tyre 440/80R24
