Telescopic Handler

A telescopic handler is multi-functional construction machinery combining forklift, crane and loader capabilities. Equipped with an extendable, angle-adjustable hydraulic boom and off-road chassis, it features larger working range and better trafficability than conventional forklifts, with crane-level lifting capacity. Widely used in construction, farming and industrial logistics, this all-in-one machine is gradually replacing single-purpose equipment.

Telescopic Handler

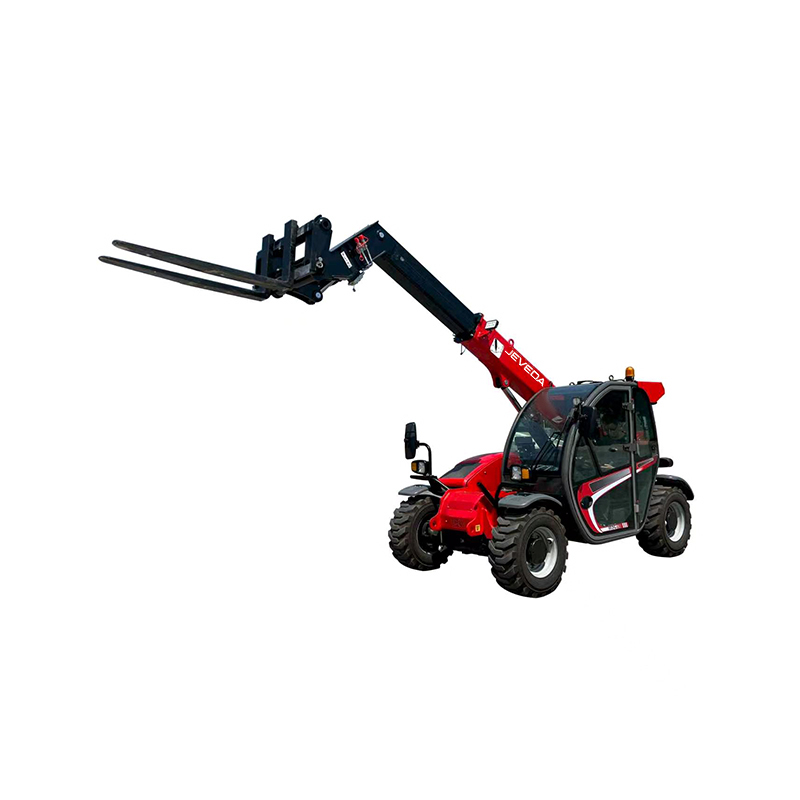

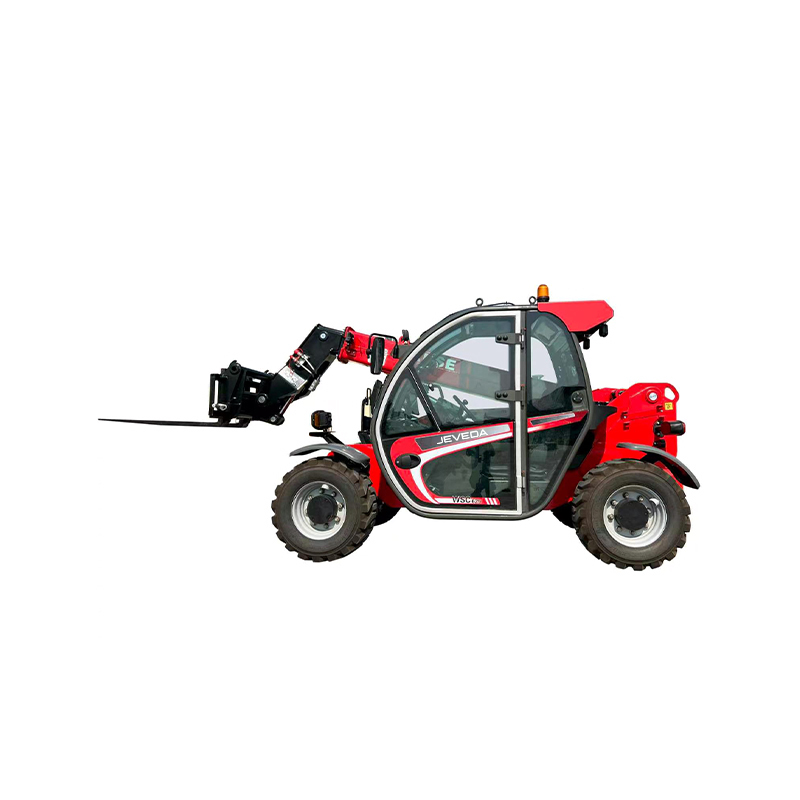

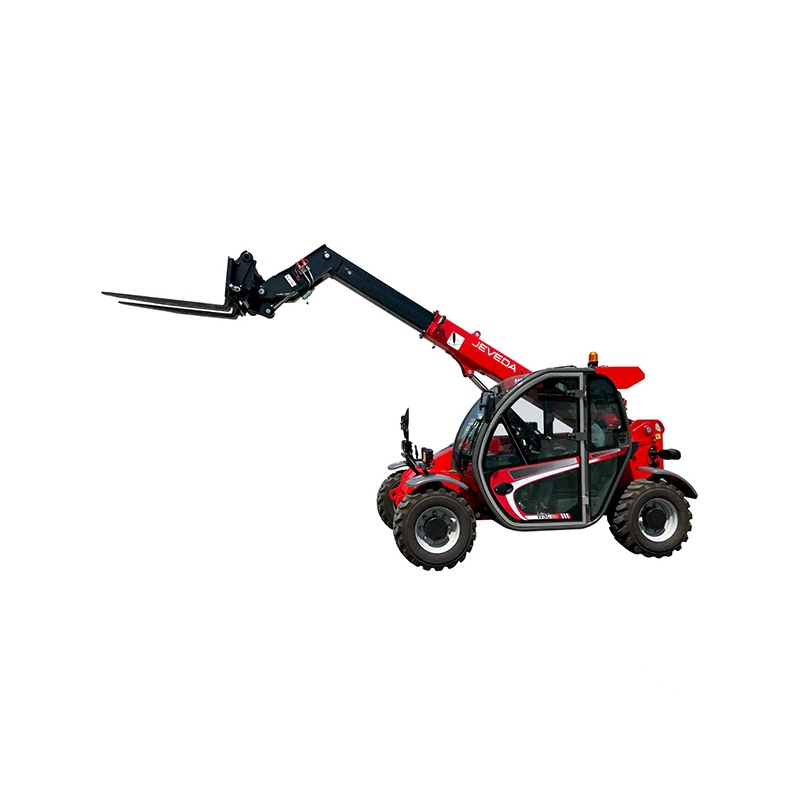

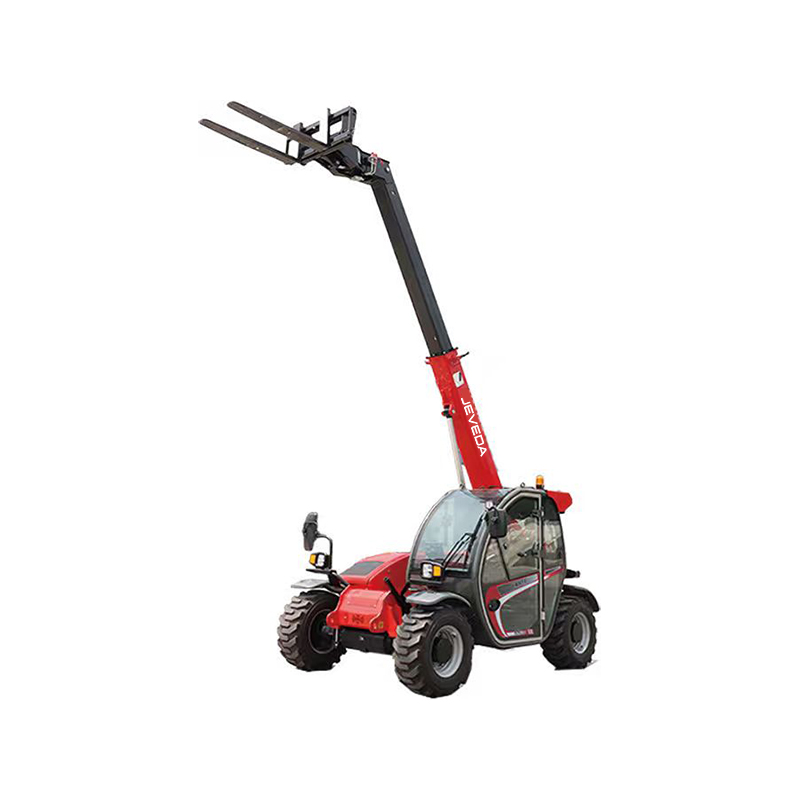

JT625 Compact Telescopic Handler

Compact Telehandler: Featuring a compact body size, it typically measures 1.8 meters in width and stands less than 2.1 meters in height. It boasts a load capacity of 2.5 tons and offers a lifting height of up to 6 meters. It is ideally suited for urban construction sites with limited space, indoor warehousing operations, or narrow farm passageways.

ASK FOR A QUOTE
  • PARAMETER
    Engine
    Engine Brand Kubota / EURO III
    Engine Model Kubota V3307
    Max Power 55.4 kw /2600rpm(74.3 hp /2600rpm)
    Performance
    Ratedload 2500 KG/5512 lb
    Machine weight 4900 KG/10803 lb
    Maximum lifting height 5.95 m/19.52 ft
    Maximum outreach 2.19 m/7.19 ft
    Minimum turning radius 3100 mm/ 10.17ft
    Maximum horizontal lifting capacity 800 kg / 1764 lb
    Diesel capacity 65 L/17.17US gal
    Hydraulic oil volume 95L/25.10 US gal
    Drive form 4WD
    Maximum travel speed 27km/h /16.78 mph
    Telescopic arm extension time 7s
    Telescopic arm retraction time 4.5s
    Main boom rising time 8s
    Main boom lowering time 6.5s
    Dimension
    Overall length 3923 mm/12.87 ft
    Overall width 1835 mm/6.02 ft
    Overall height 2140 mm/7.02 ft
    Wheelbase 2300 mm/7.55ft
    Minimum ground clearance 348 mm/13.70 inch
    Tire 12-16.5
    Main configuration
    Axles Carraro
    Gearbox Carraro
    Closed travel pump Danfoss
    Working pump Danfoss
    Travel motor Danfoss
