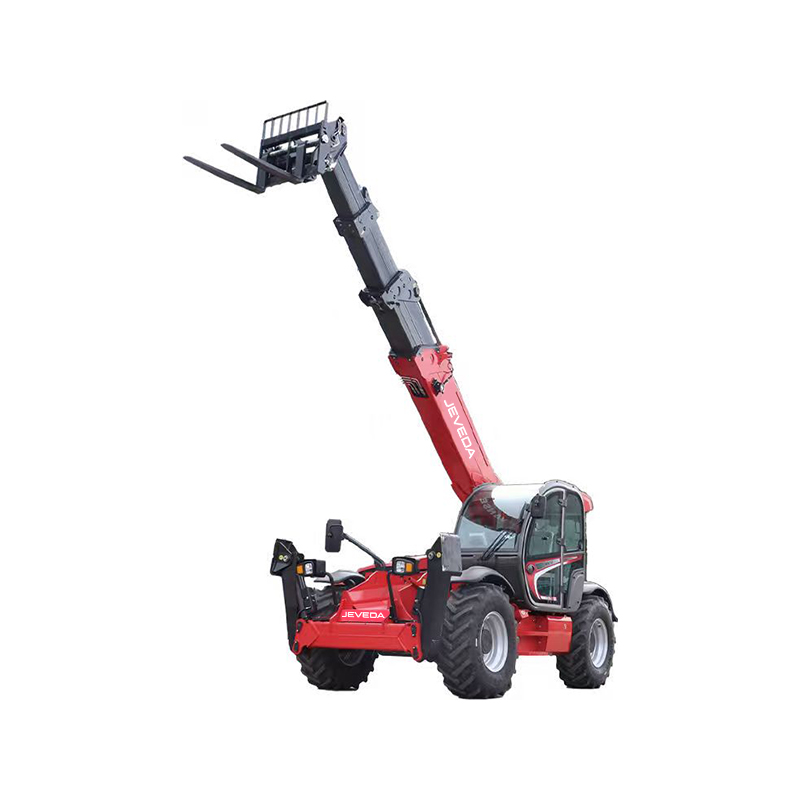

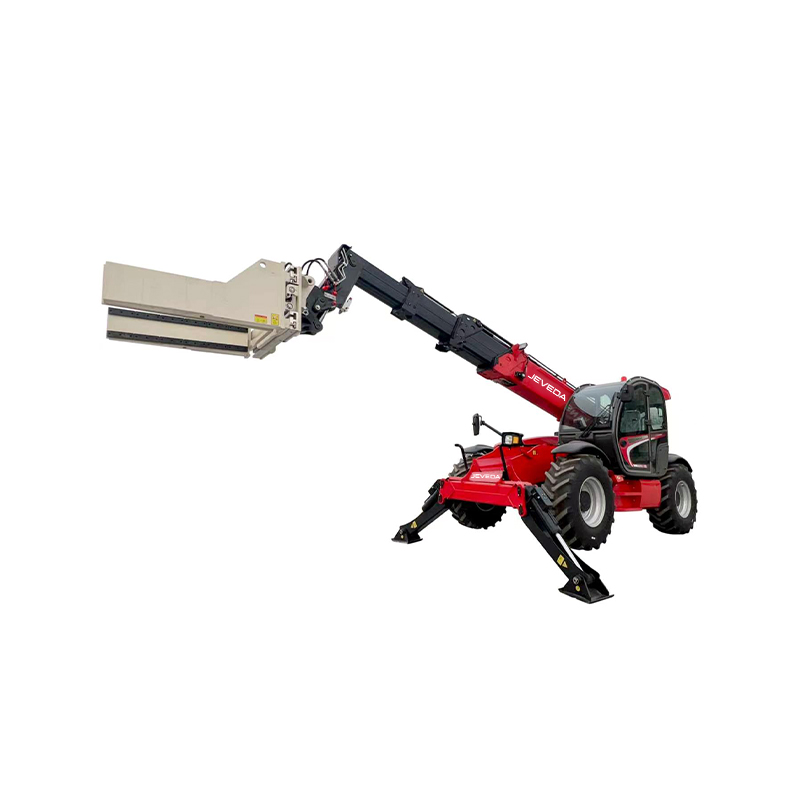

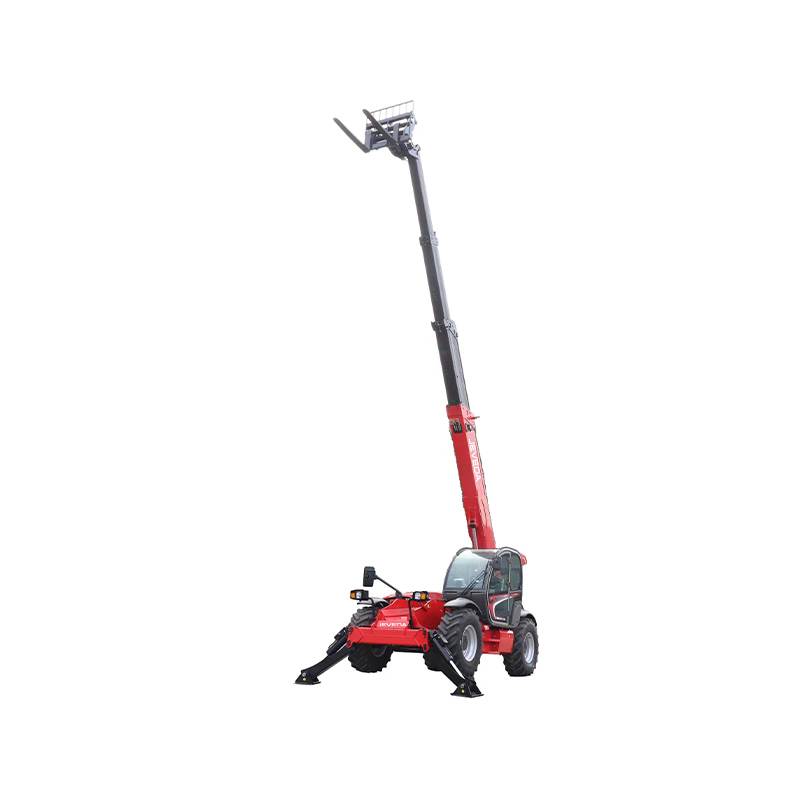

Home / Products / Telescopic Handler / JT1840 Heavy-Duty High-Lift Telescopic Handler

Custom Telescopic Handler

A telescopic handler is multi-functional construction machinery combining forklift, crane and loader capabilities. Equipped with an extendable, angle-adjustable hydraulic boom and off-road chassis, it features larger working range and better trafficability than conventional forklifts, with crane-level lifting capacity. Widely used in construction, farming and industrial logistics, this all-in-one machine is gradually replacing single-purpose equipment.

Telescopic Handler
  • PARAMETER
    Engine
    Engine Brand Cummins / EURO III Perkins / EURO V Yuchai / EURO V
    Engine Model QSB3.9-C110 904J-E36TA YCF36100-S500
    Capacity of cylinders 3.9 L(238 cid) 3.62L(221cid) 3.62L(221cid)
    Cooling Method Water Cooling Water Cooling Water Cooling
    Max Power 81kw/2200r(109hp/2200r) 74.4kw/2400r (100hp/2400r) 74kw/2200r(99 hp/2200r)
    Max Torque 480 Nm(354 lb-ft) 430 Nm(317 Ib-ft) 420 Nm(310 Ib-ft)
    Traction Force 70.5 KN 70.5 KN 70.5 KN
    Capability
    Max Capacity 4000kg /8818 lb
    Max Lifting Height 17.6 m/57.74ft
    Max Outreach 13.1m/42.98ft
    Breakout Force with Bucket 7500 daN/16861Ibf
    Lift Capacity at Maximum height 2500 kg/ 5512 lb
    Lift Capacity at Maximum reach 750 kg /1653 Ib
    Performance
    Lifting 7.5s - 17.5s
    Lowering 13.5s - 23.5s
    Extension 12.5s -22.5s
    Retraction 8s - 18s
    Transmission
    Travel Speed 0-30km/h/0-19 mph
    Gradeability 30°
    Drive Mode 4WD
    Number of Gears (forward/reverse) 2/2
    Parking Brake Automatic parking
    Service Brake Wet Brake
    Tank
    Fuel Tank 140 L/37.0 US gal
    Hydraulic Oil 180 L/47.6 US gal
    Fork
    Forks Length/ Width/ Section 1200x150x50 mm/ /47.24"x5.91"x1.97"
    Tilt-Up Angle 16°
    Tilt-Down Angle 117°
    Weight
    Machine Weight (with forks) 12600kg / 27778lb
    Dimension
    Overall Length to Carriage 6.3 m/20.67 ft
    Overall Width 2.42 m/7.94 ft
    Overall Height 2.7 m/8.86 ft
    Wheelbase 3.07m/10.07ft
    Front Track 1.96 m/6.43 ft
    Ground Clearance 0.43 m /16.93 inch
    Tilt Angle of frame(L&R) ±9°
    Turning radius 4.2 m/13.78 ft
    Tyre 440/80R24
About
Zhejiang Jeveda Machinery Co., Ltd.

Our Company is China JT1840 Heavy-Duty High-Lift Telescopic Handler Manufacturers and JT1840 Heavy-Duty High-Lift Telescopic Handler Factory. Jeveda is a company in China that focuses on the manufacturing of small construction machinery and logistics equipment. Its core products include telehandlers, skid loaders, mini excavators, forklifts and so on. The company integrates R&D, production operations, manufacturing and after-sales services to build a complete and efficient industrial chain.

Jeveda's R&D team is composed of a group of senior experts who have been deeply involved in the construction machinery industry for more than 30 years. They have rich practical experience and profound professional knowledge. These experts have been deeply involved in the research and development of many products, including excavators, loaders, forklifts, etc. They have solid achievements in the design of the whole machine, and also pay attention to the aesthetics of the product, ergonomics and the optimization of the hydraulic mechanical system, and are committed to creating high-quality construction machinery products that are both practical and beautiful and in line with ergonomic principles.

In the current era of rapid transformation in the global construction machinery industry, environmental policies are becoming increasingly strict, and energy transition is imminent. Miniaturization and electrification of construction machinery have become a new trend in industry development. Jeveda has precisely targeted this field, focusing on the miniaturization and electrification of construction machinery and forklifts, and strives to be a competitive global supplier of overall solutions for miniaturized construction machinery.
