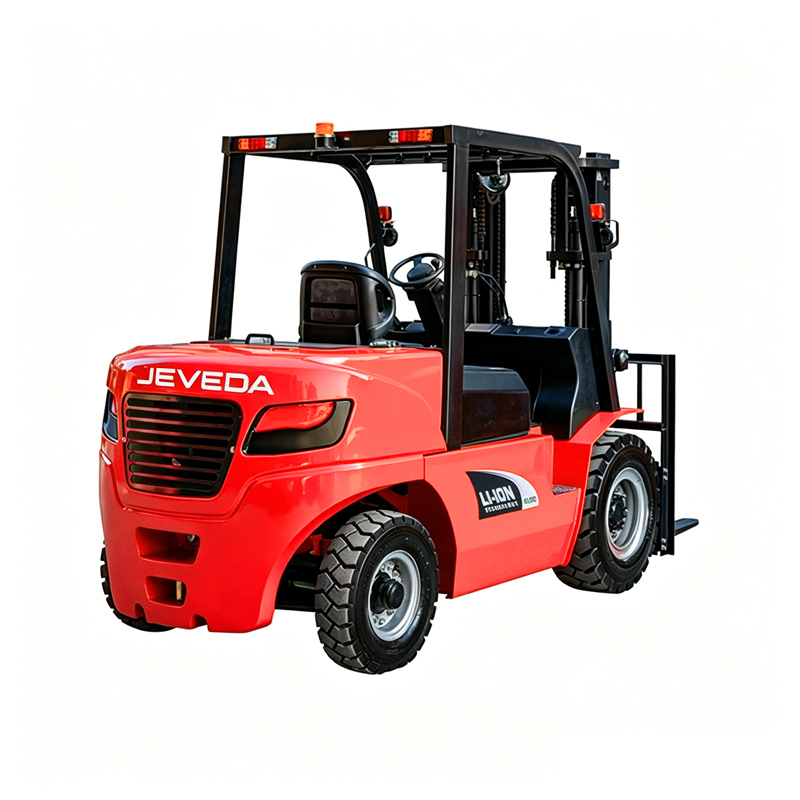

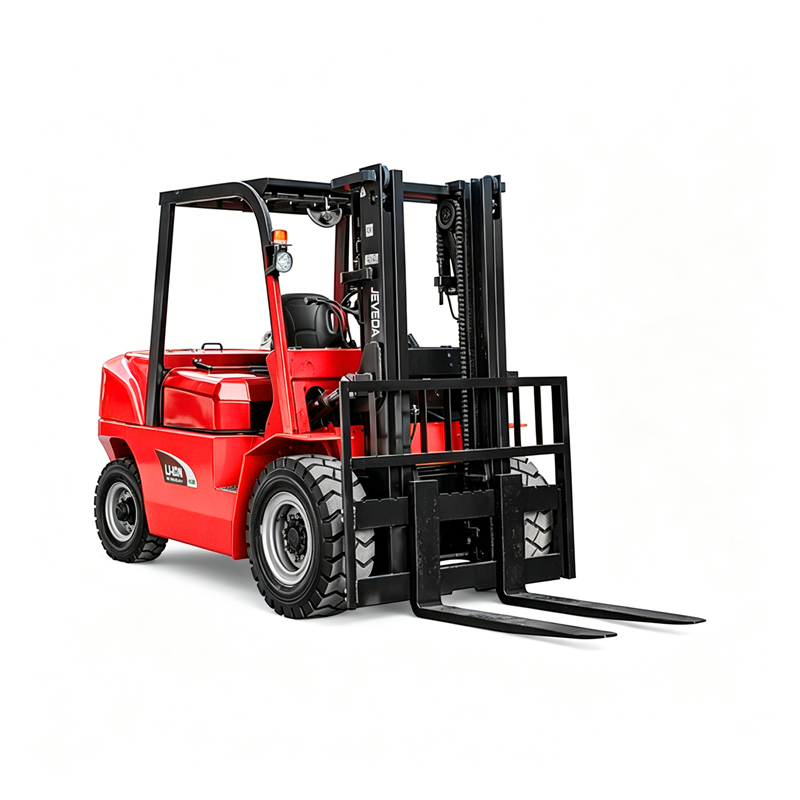

Combining the agility of a smaller truck with the strength of a heavy lifter, this lithium-powered unit provides a compact solution for moving 4 to 5-ton loads without the emissions of IC engines
Custom Forklift Truck
Combining the agility of a smaller truck with the strength of a heavy lifter, this lithium-powered unit provides a compact solution for moving 4 to 5-ton loads without the emissions of IC engines
| MAIN SPECIFICATIONS (STANDARD PERFORMANCE) |
||||||
| General |
||||||
| 1 | Manufacturer | JEVEDA | ||||
| 2 | Model | FB20-YNLZ2 | FB25-YNLZ2 | FB30-YNLZ2 | FB35-YNLZ2 | |
| 3 | Power Type | Li-ion | ||||
| 4 | Rated Load Capacity | Q(kg) | 2000 | 2500 | 3000 | 3500 |
| 5 | Load Centre | C(mm) | 500 | |||
| Characteristic & Dimenson |
||||||
| 6 | Rated Lit Height | H3(mm) | 3000 | |||
| 7 | Free Lit Height | H2(mm) | 100 | |||
| 8 | Fork Size(L×W×T) | mm | 1070×120×40 | 1070×125×45 | 1070×125×50 | |
| 9 | Mast Tilt Angle(F/R,α°/β° | deg | 6°/12° | |||
| 10 | Fork Overhang(Wheel Center to Fork Face) | X1(mm) | 479 | 484 | ||
| 11 | Rear Overhang | X2(mm) | 520 | 595 | 635 | |
| 12 | Ground Clearance(Bottom of Mast) | H7(mm) | 130 | 145 | ||
| 13 | Length to Face of Fork(Without Fork) | L1(mm) | 2660 | 2700 | 2775 | |
| 14 | Overall Width | B1(mm) | 1150 | 1225 | ||
| 15 | Mast Lowered Height | H1(mm) | 2055 | 2070 | ||
| 16 | Mast Extended Height (With Backrest) | H4(mm) | 4070 | 4070 | ||
| 17 | Overhead Guard Height | H5(mm) | 2215 | 2235 | ||
| 18 | Turning Radius(Outside) | Wa(mm) | 2365 | 2425 | 2500 | |
| 19 | Min. Aisle width for pallets | Ast(mm) | 4120 | 4180 | 4255 | |
| Performance |
||||||
| 20 | Travel Speed(No Load) | km/h | 11/12 | |||
| 21 | Lifting Speed (Full Load) | mm/sec | 260/380 | 250/360 | 220/340 | |
| 22 | Lowering Speed(Full Load/No Load) | mm/sec | No Load≥300 Full Load≤600 | |||
| 23 | Max.Gradeability(Full Load) | % | 15 | 12 | ||
| Chassis |
||||||
| 24 | Tyre(Front×2) | mm | 7.00-12-12PR | 28×9-15-12PR | ||
| 25 | Tyre(Rear×2) | mm | 6.00-9-10PR | 6.50-10-10PR | ||
| 26 | Front Tread | B2(mm) | 970 | 1000 | ||
| 27 | Rear Tread | B3(mm) | 980 | 980 | ||
| 28 | Wheelbase | Y(mm) | 1650 | 1700 | ||
| Weight |
||||||
| 29 | Total Weight | kg | 3385 | 3605 | 4460 | 4775 |
| 30 | Front Axle Weight Distribution(Full Load) | kg | 4846 | 5494 | 6714 | 6997 |
| 31 | Rear Axle Weight Distribution (Full Load) | kg | 538 | 610 | 746 | 777 |
| 32 | Front Axle Weight Distribution(No Load) | kg | 1354 | 1442 | 1784 | 1910 |
| 33 | Rear Axle Weight Distribution(No Load) | kg | 2031 | 2163 | 2676 | 2865 |
| Power & Transmission |
||||||
| 34 | Battery | VIAh | 80V/150AH option 220AH option 350AH |
80V/175AH option 270AH option 350AH |
80V1220AH option 270AH option 350AH |
80V/270AH option 350AH |
| 35 | Drive Motor | KW | 10 | |||
| 36 | Lift Motor | KW | 12 | |||
| 37 | Operating Pressure (For Attachments) | Mpa | 17.5 | |||
| Specifications and characteristics are subject to change without notice. |
||||||
Our Company is China Mid-Range Eco-Force Forklift (2.0-3.5T) Manufacturers and Mid-Range Eco-Force Forklift (2.0-3.5T) Factory. Jeveda is a company in China that focuses on the manufacturing of small construction machinery and logistics equipment. Its core products include telehandlers, skid loaders, mini excavators, forklifts and so on. The company integrates R&D, production operations, manufacturing and after-sales services to build a complete and efficient industrial chain.
Jeveda's R&D team is composed of a group of senior experts who have been deeply involved in the construction machinery industry for more than 30 years. They have rich practical experience and profound professional knowledge. These experts have been deeply involved in the research and development of many products, including excavators, loaders, forklifts, etc. They have solid achievements in the design of the whole machine, and also pay attention to the aesthetics of the product, ergonomics and the optimization of the hydraulic mechanical system, and are committed to creating high-quality construction machinery products that are both practical and beautiful and in line with ergonomic principles.
In the current era of rapid transformation in the global construction machinery industry, environmental policies are becoming increasingly strict, and energy transition is imminent. Miniaturization and electrification of construction machinery have become a new trend in industry development. Jeveda has precisely targeted this field, focusing on the miniaturization and electrification of construction machinery and forklifts, and strives to be a competitive global supplier of overall solutions for miniaturized construction machinery.
