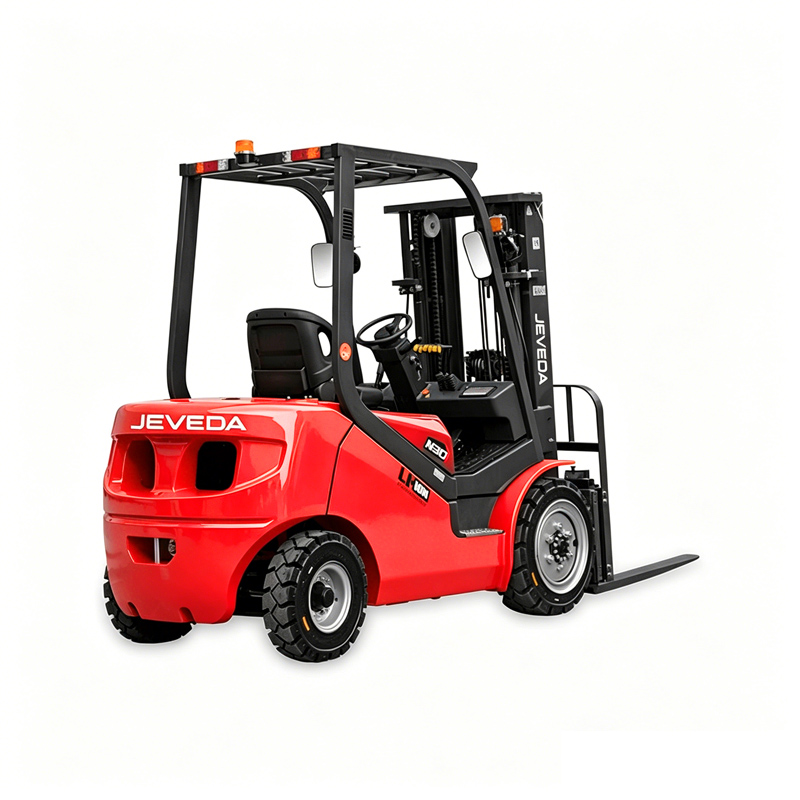

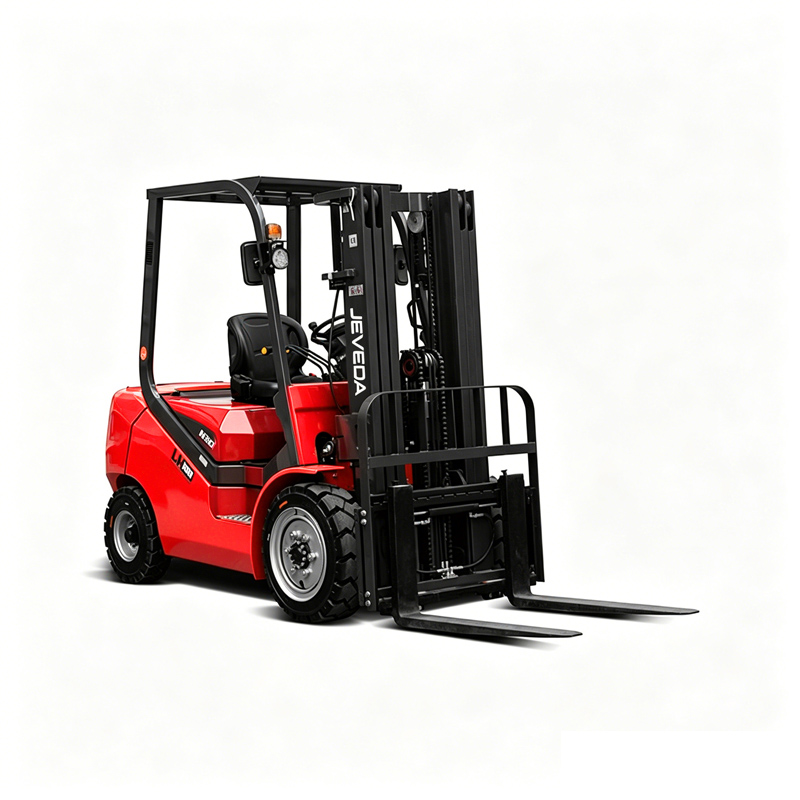

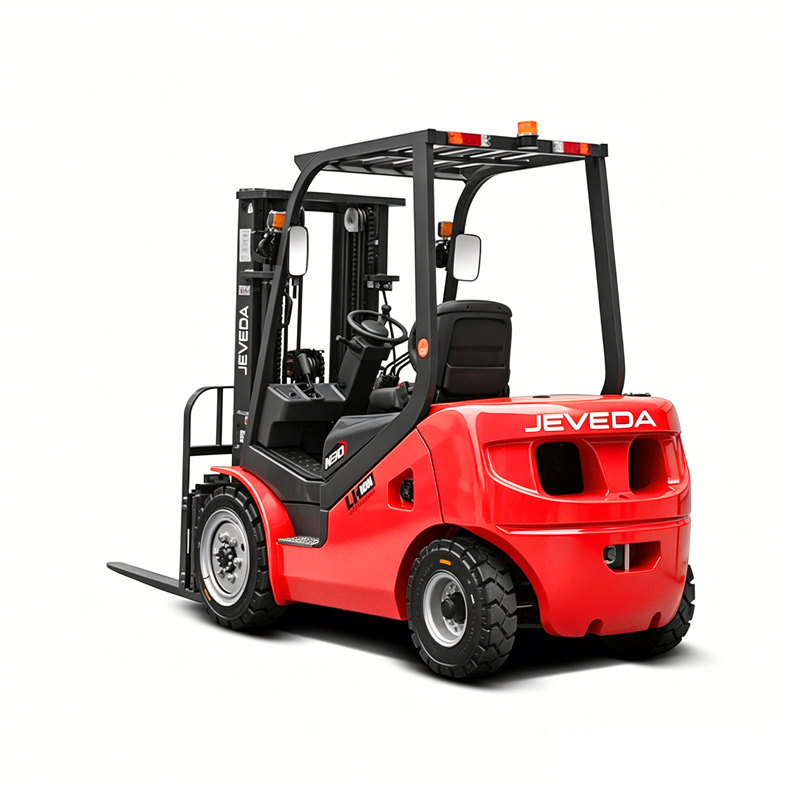

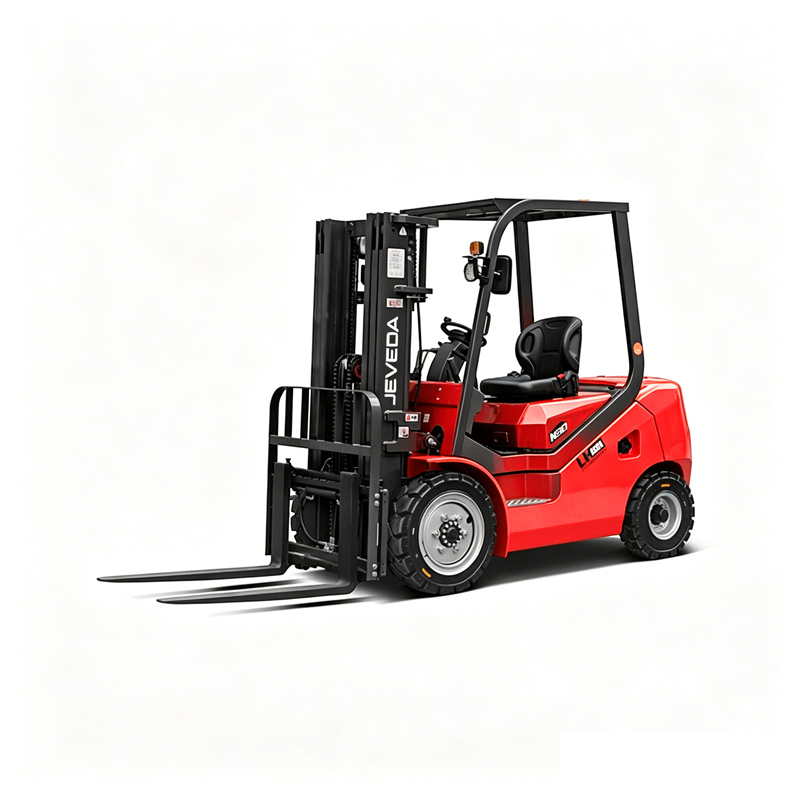

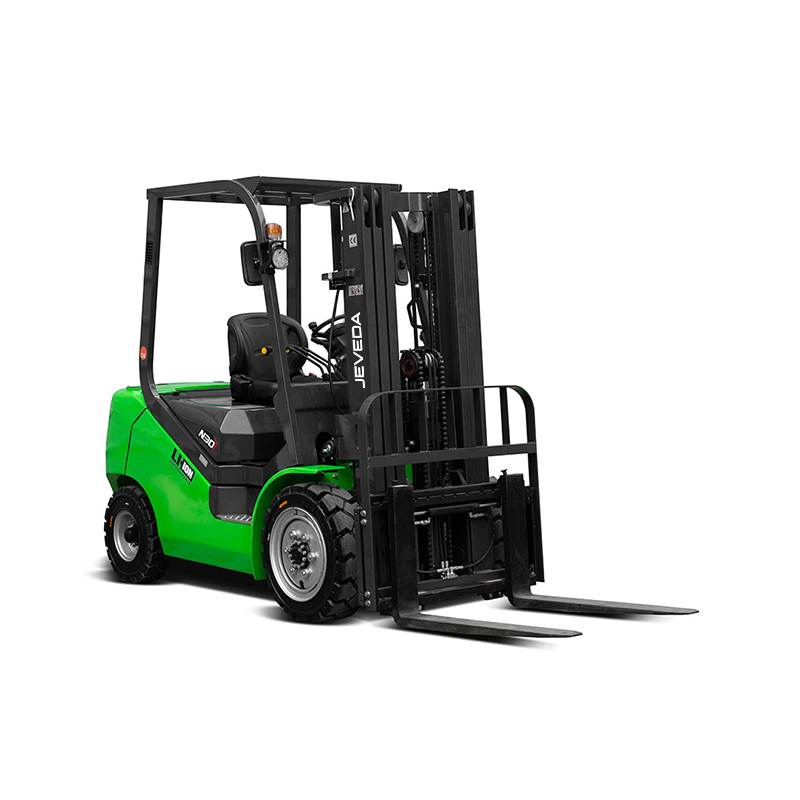

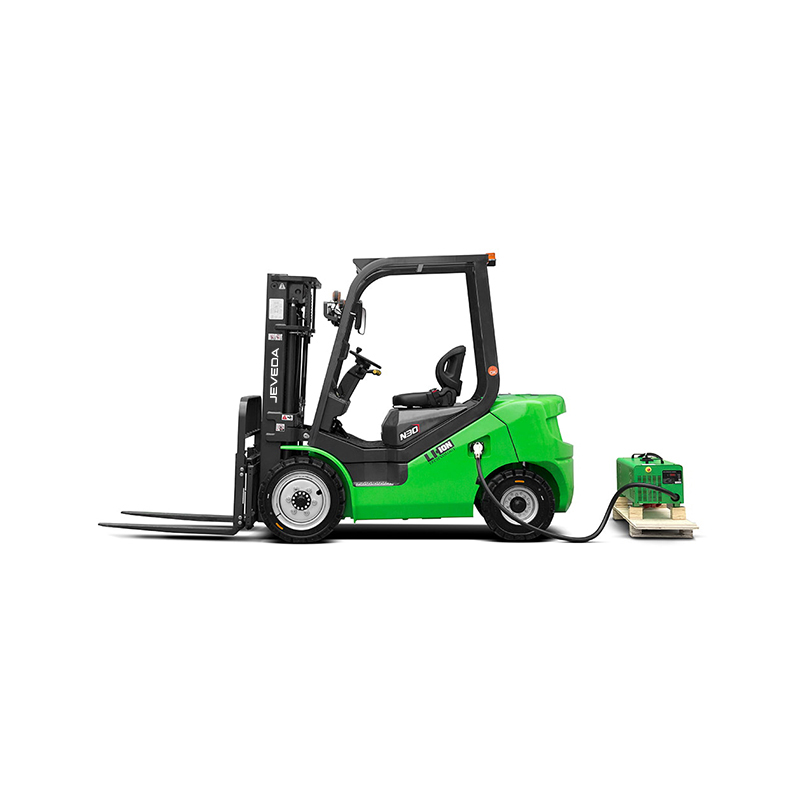

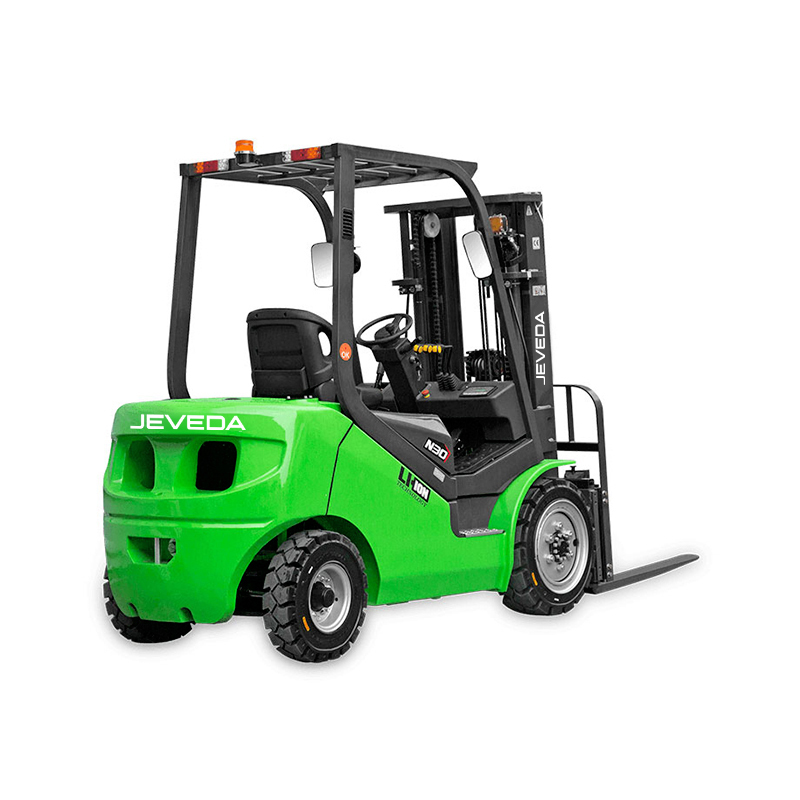

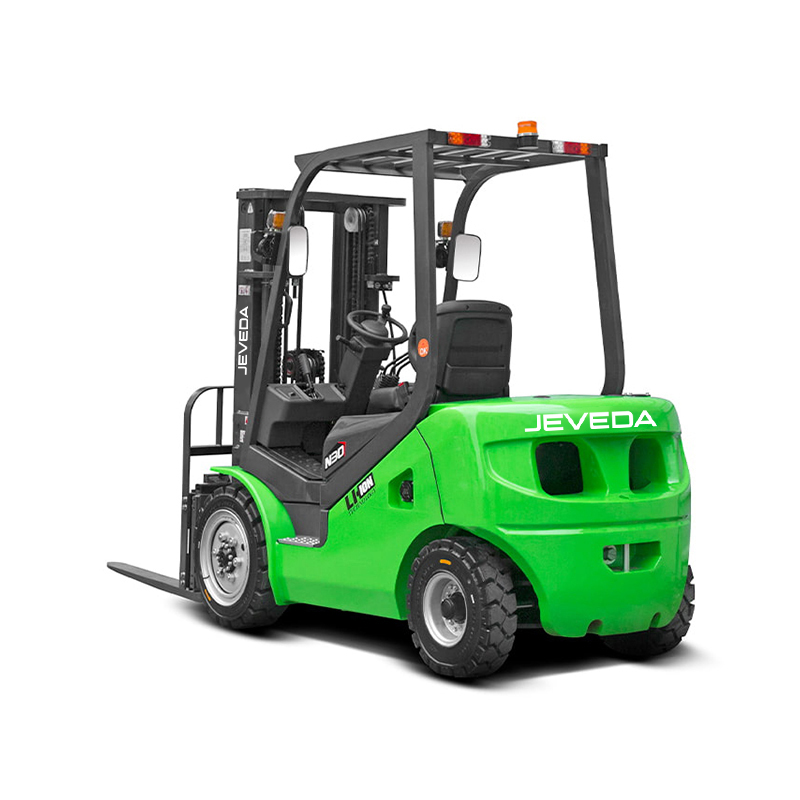

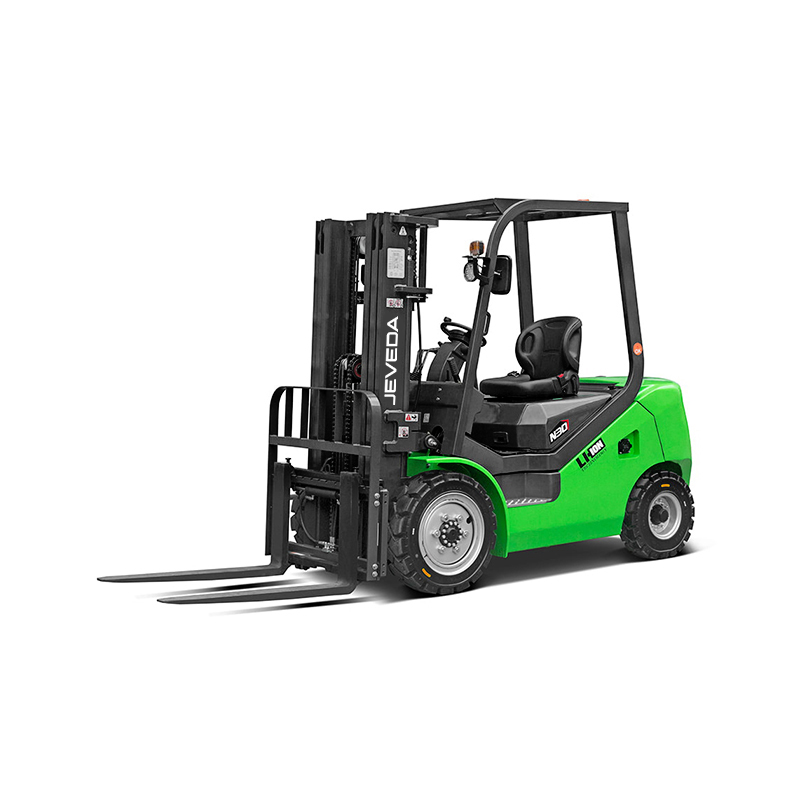

A high-performance forklift powered by advanced lithium-ion technology, offering rapid charging and zero maintenance requirements for eco-conscious businesses handling 2.0 to 3.5-ton loads
Custom Forklift Truck
| Specifications | 1 | Manufacturer | Jeveda | ||||
| 2 | Engine Model | FB20 | FB25 | FB30 | FB35 | ||
| 3 | Rated Lifting Capacity | Q(kg) | 2000 | 2500 | 3000 | 3500 | |
| 4 | Load Center Distance | C(mm) | 500 | 500 | |||
| 5 | Lifting Height | H3(mm) | 3000 | 3000 | |||
| 6 | Free Lifting Height | H2(mm) | 140 | 140 | 145 | 150 | |
| 7 | Fork Dimensions (L/W/T) | (mm) | 1070×120×40 | 1070×125×45 | 1070×125×50 | ||
| 8 | Mast Tilt Angle (Forward/Backward) | Deg | 6°/12° | 6°/12 ° | |||
| Dimensions | 9 | Overall Dimensions: Overall Length | L1(mm) | 2380 | 2380 | 2475 | 2535 |
| 10 | Width | B1(mm) | 1150 | 1150 | 1225 | 1225 | |
| 11 | Mast Lowered Height | HI(mm) | 2055 | 2055 | 2070 | 2070 | |
| 12 | Maximum Working Height (including rack guard) | H4(mm) | 4070 | 4070 | 4070 | 4070 | |
| 13 | Roof Guard Height | H5(mm) | 2125 | 2125 | 2125 | 2125 | |
| 14 | Minimum Turning Radius | wa(mm) | 2080 | 2080 | 2215 | 2280 | |
| 15 | Front Overhang | x(mm) | 460 | 460 | 475 | 480 | |
| 16 | Front Track Width | B2(mm) | 970 | 970 | 1000 | 1000 | |
| 17 | Rear Track Width | B3(mm) | 950 | 950 | 980 | 980 | |
| 18 | Ground Clearance | H6(mm) | 110 | 110 | 125 | 125 | |
| 19 | Wheelbase | Y(mm) | 1500 | 1500 | 1600 | 1600 | |
| 20 | Fork Adjustment Range | (mm) | 250/1035 | 250/1075 | |||
| 21 | Minimum Right-Angle Stacking Aisle Width 1000 (Longitudinal) × 1200 | Ast( mm) | 3830 | 3830 | 3970 | 4035 | |
| 22 | Minimum Right-Angle Stacking Aisle Width 800 × 1200 (Longitudinal) | Ast(mm) | 3960 | 3960 | 4100 | 4165 | |
| Performance | 23 | Travel Speed (Fully Loaded) | km/h | 12 | 12 | ||
| 24 | Travel Speed (Unloaded) | km/h | 13 | 13 | |||
| 25 | Lifting Speed (Fully Loaded) | mm/s | 300 | 300 | 280 | 280 | |
| 26 | Lifting speed (unloaded) | mm/s | 420 | 420 | 440 | 440 | |
| 27 | Maximum gradeability (loaded) | % | 18 | 15 | 12 | ||
| 28 | Maximum gradeability (unloaded) | % | 20 | 16 | 13 | ||
| 29 | Net weight (including battery) | kg | 4160 | 4660 | 5160 | 5660 | |
| 30 | Tires (front × 2) | 7.00-12-12PR | 28×9-15-12PR | ||||
| 31 | Tires (rear × 2) | 18×7-8-14PR | 18×7-8-14PR | ||||
| Drive | 32 | Drive motor | kw | 11 | 11 | 12 | 12 |
| 33 | Lifting motor | kw | 12 | 12 | 13.5 | 13.5 | |
| 34 | Standard lead-acid battery | V/Ah | 48/620 | 48/620 | 80/500 | ||
| 35 | Standard lithium-iron phosphate battery | V/Ah | 51.2/405 | 83.2/405 | |||
| 36 | Controller type | AC | AC | ||||
| 37 | Controller manufacturer | ZAPI | ZAPI | ||||
| 38 | Operating pressure | Mpa | 17.5 | 17.5 | 17.5 | 17.5 | |
Our Company is China Sustainable Lithium-Ion Forklift (Standard) Manufacturers and Sustainable Lithium-Ion Forklift (Standard) Factory. Jeveda is a company in China that focuses on the manufacturing of small construction machinery and logistics equipment. Its core products include telehandlers, skid loaders, mini excavators, forklifts and so on. The company integrates R&D, production operations, manufacturing and after-sales services to build a complete and efficient industrial chain.
Jeveda's R&D team is composed of a group of senior experts who have been deeply involved in the construction machinery industry for more than 30 years. They have rich practical experience and profound professional knowledge. These experts have been deeply involved in the research and development of many products, including excavators, loaders, forklifts, etc. They have solid achievements in the design of the whole machine, and also pay attention to the aesthetics of the product, ergonomics and the optimization of the hydraulic mechanical system, and are committed to creating high-quality construction machinery products that are both practical and beautiful and in line with ergonomic principles.
In the current era of rapid transformation in the global construction machinery industry, environmental policies are becoming increasingly strict, and energy transition is imminent. Miniaturization and electrification of construction machinery have become a new trend in industry development. Jeveda has precisely targeted this field, focusing on the miniaturization and electrification of construction machinery and forklifts, and strives to be a competitive global supplier of overall solutions for miniaturized construction machinery.
