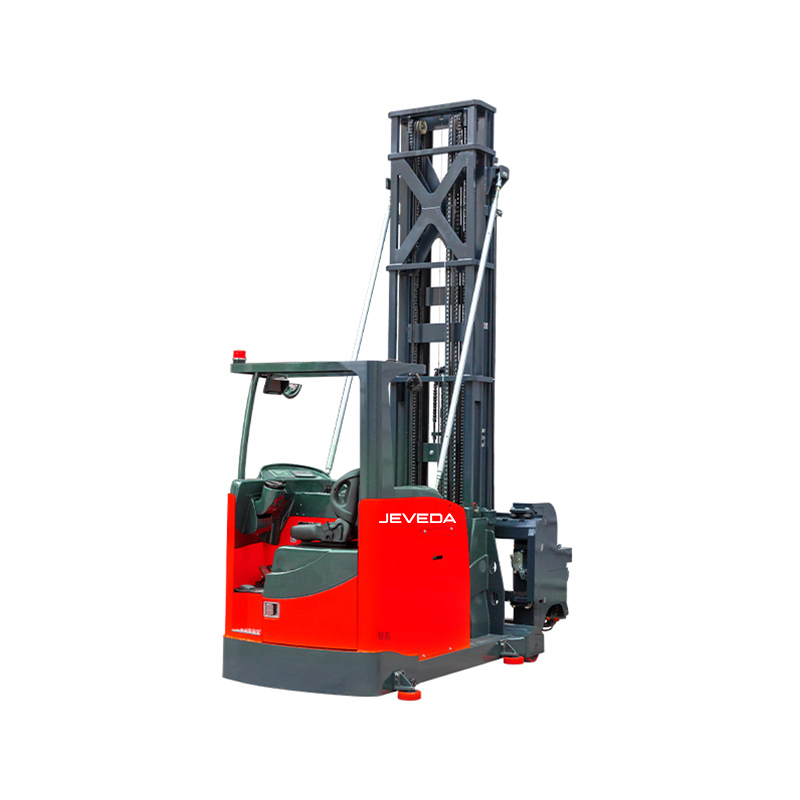

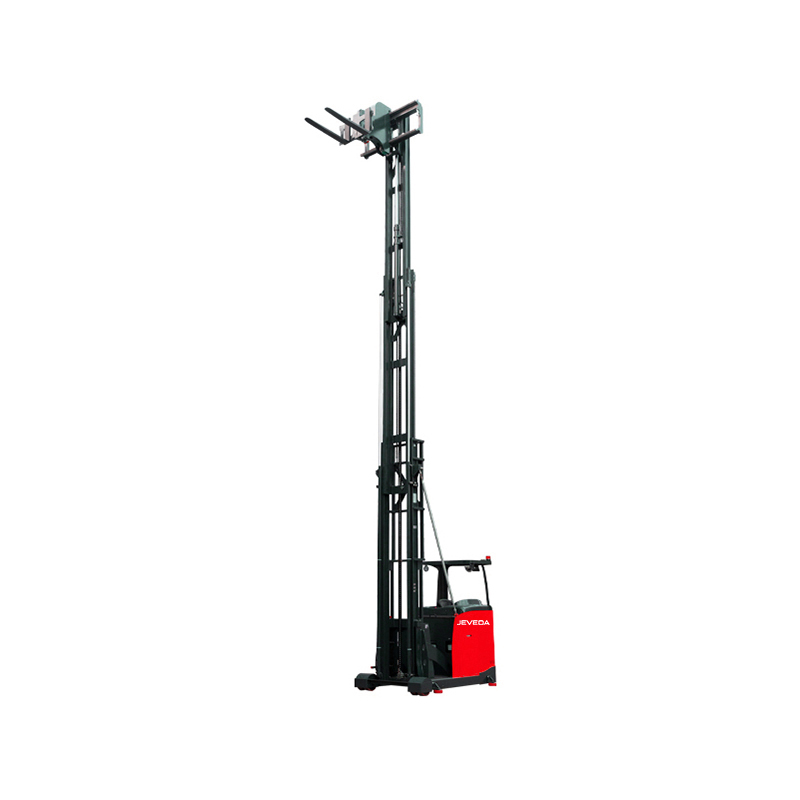

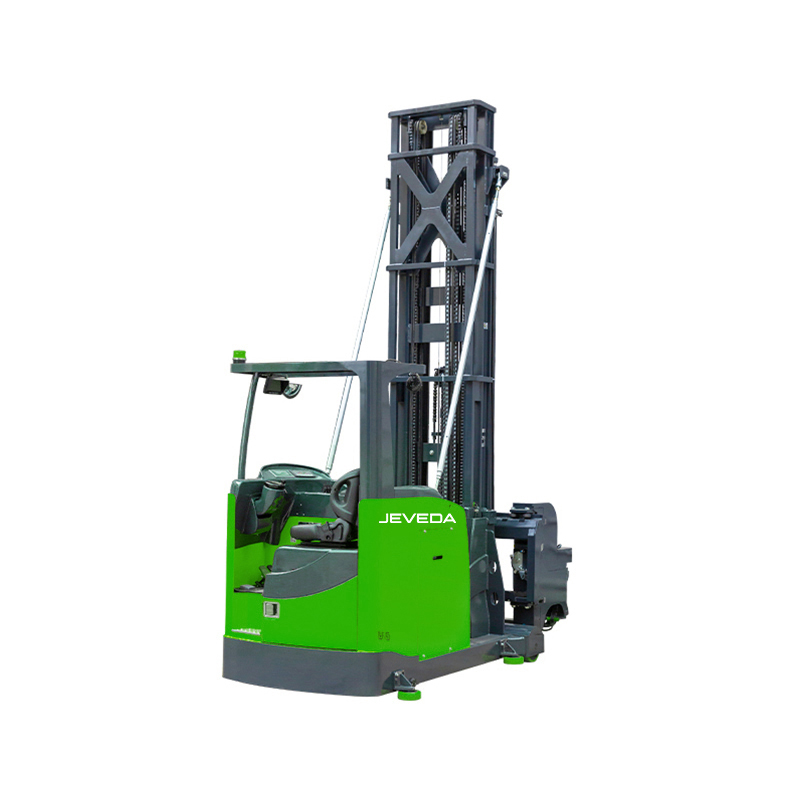

A specialized solution for ultra-narrow aisles, this machine maximizes vertical storage capacity by operating with high precision at the ground level while the mast extends to reach extreme heights
Custom Forklift Truck
| Specifications | 1 | Manufacturer | Jeveda | |
| 2 | Engine Model | FBAP15 | ||
| 3 | Power Source | Electromagnetic | ||
| 4 | Drive Type | Seated | ||
| 5 | Rated Lifting Capacity | 1500 | ||
| 6 | Load Center Distance | C(mm) | 600 | |
| 7 | Lifting Height | H3(mm) | 8000 | |
| 8 | Fork Dimensions | mm | 920x120x40 | |
| Dimensions | 9 | Overall Length | L1(mm) | 4250/3615 |
| 10 | Overall Width | B1(mm) | 1600 | |
| 11 | Mast Height (Lowered) | H1(mm) | 3700 | |
| 12 | Maximum Mast Height (Including Shelf Guard) | H4(mm) | 9046 | |
| 13 | Overhead Guard Height | H5(mm) | 2220 | |
| 14 | Minimum Turning Radius | Wa(mm) | 2270 | |
| 15 | Ground Clearance | H6(mm) | 60 | |
| 16 | Side Shift Distance | X(mm) | 320 | |
| 17 | Side Shift Time | S | 8 | |
| 18 | Rotation Angle | Deg | 180 | |
| 19 | Rotation Time | S | 8 | |
| 20 | Wheelbase | B2(mm) | 1950 | |
| 21 | Minimum Right-Angle Aisle Width | Ast( mm) | 4125 | |
| 22 | Minimum Aisle Width | Au(mm) | 1700 | |
| Performance | 23 | Travel Speed (Fully Loaded) | km/h | 9 |
| 24 | Travel Speed (Unloaded) | km/h | 9.5 | |
| 25 | Lifting Speed (Fully Loaded) | mm/s | 220 | |
| 26 | Lifting Speed (Unloaded) | mm/s | 250 | |
| 27 | Net Weight (including battery) | kg | 5550 | |
| 28 | Front Wheels × 2 (Solid Polyurethane Tires) | 250×110×4 | ||
| 29 | Drive Wheel × 1 (Solid Polyurethane Tire) | 343×135 | ||
| Drive | 30 | Drive Motor | kw | 6 |
| 31 | Lifting Motor | kw | 11 | |
| 32 | Battery | V/Ah | 48/840 | |
| 33 | Steering System | Electronics | ||
| 34 | Service Brake | Electromagnetism | ||
| 35 | Height Control | Automation | ||
| 36 | Controller Type | AC | ||
| 37 | Controller Manufacturer | ZAPI | ||
| 38 | Operating Pressure | Mpa | 20 |
Our Company is China Man-Down Three-Way Forklift Manufacturers and Man-Down Three-Way Forklift Factory. Jeveda is a company in China that focuses on the manufacturing of small construction machinery and logistics equipment. Its core products include telehandlers, skid loaders, mini excavators, forklifts and so on. The company integrates R&D, production operations, manufacturing and after-sales services to build a complete and efficient industrial chain.
Jeveda's R&D team is composed of a group of senior experts who have been deeply involved in the construction machinery industry for more than 30 years. They have rich practical experience and profound professional knowledge. These experts have been deeply involved in the research and development of many products, including excavators, loaders, forklifts, etc. They have solid achievements in the design of the whole machine, and also pay attention to the aesthetics of the product, ergonomics and the optimization of the hydraulic mechanical system, and are committed to creating high-quality construction machinery products that are both practical and beautiful and in line with ergonomic principles.
In the current era of rapid transformation in the global construction machinery industry, environmental policies are becoming increasingly strict, and energy transition is imminent. Miniaturization and electrification of construction machinery have become a new trend in industry development. Jeveda has precisely targeted this field, focusing on the miniaturization and electrification of construction machinery and forklifts, and strives to be a competitive global supplier of overall solutions for miniaturized construction machinery.
