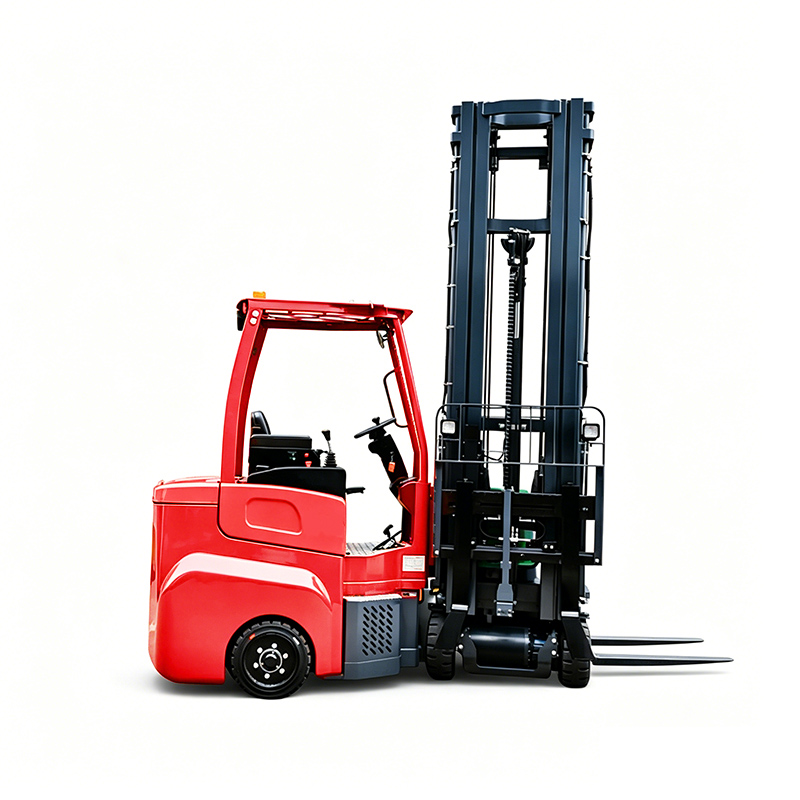

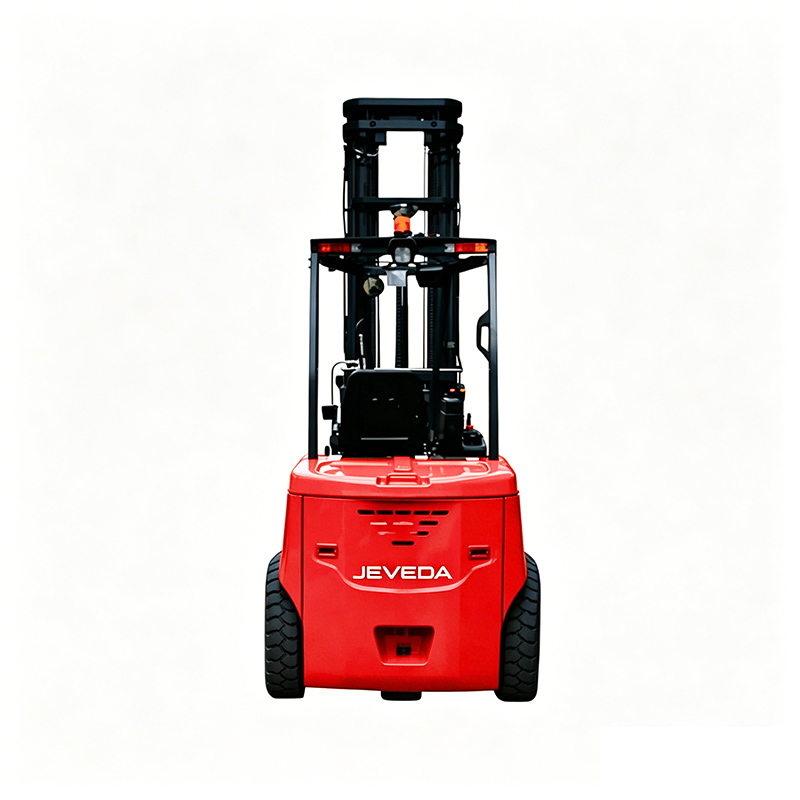

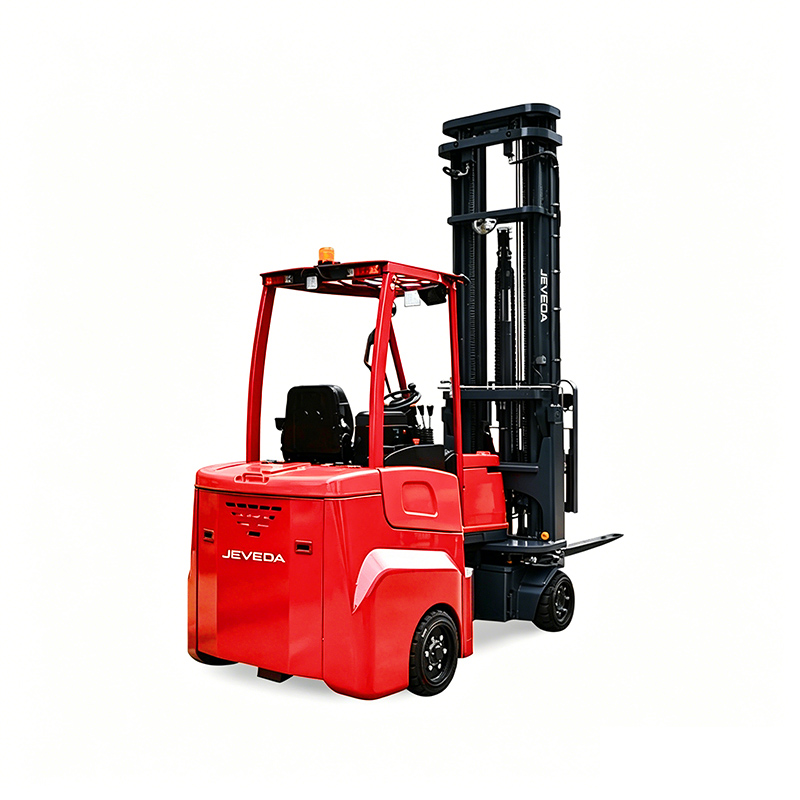

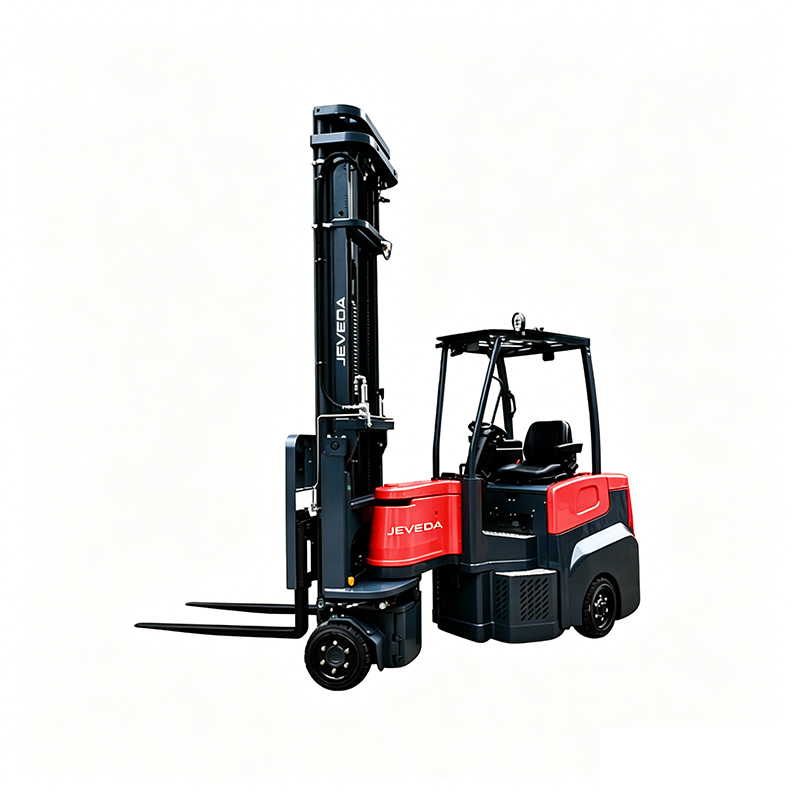

Home / Products / Forklift Truck / MJ20 Pivot-Steer Flexible Warehouse Forklift

Custom Forklift Truck

A forklift is a self-propelled industrial special equipment equipped with a mast and forks, designed for material stacking and short-distance in-site transportation. It greatly improves logistics efficiency. JEVEDA’s forklift product lineup covers internal combustion forklifts, electric forklifts, and warehouse forklifts to meet diverse operational needs.

Forklift Truck
  • PARAMETER
    Specifications 1  Manufacturer Jeveda
    2  Engine Model FBRS16NH-AC FBRS18NH-AC FBRS20NH-AC
    3  Power Source Battery
    4  Drive Type Seated
    5  Rated Lifting Capacity Q(kg) 1600  1800  2000
    6  Load Center Distance C(mm) 600  600  600
    7  Lifting Height H3(mm) 8500  8500  8500)
    8  Free Lifting Height H2(mm) 2610  2610  2610
    9  Fork Dimensions mm 1070×120×40 1070×120×40 1070×120×40
    10  Mast Tilt Angle Deg 2°/4° 2°/4° 2°/4°
    Dimensions 11  Overall Length (excluding forks) L1(mm) 1926  2026
    12  Rear Length L2(mm) 1400
    13  Width BI(mm) 1270
    14  Mast Height (unraised) HI(mm) 3581
    15  Maximum Mast Height (including rack stop) H4(mm) 9465
    16  Overhead Guard Height H5(mm) 2195
    17  Minimum Turning Radius wa(mm) 1750  1850
    18  Ground Clearance H6(mm) 76
    19  Telescopic Reach x(mm) 550  650  650
    20  Wheelbase Y(mm) 1500  1600  1600
    21  Front Track Width B2(mm) 1160
    22  Right-Angle Stacking Aisle (1000x1200 pallet, forks positioned 1200mm apart)* Ast(mm) 2835  2865  2865
    23  Right-Angle Stacking Aisle (800x1200 pallet, forks positioned 800mm apart)* Ast( mm) 2890  2900  2900
    Performance 24  Travel Speed (Fully Loaded) km/h 9
    25  Travel Speed (Unloaded) km/h 9.5
    26  Lifting Speed (Fully Loaded) mm/s 340  330  320
    27  Maximum Gradeability (Fully Loaded) % 10
    28  Net Weight (including battery) kg 4115  4150  4185
    29  Front Wheels × 2 (Solid Polyurethane Tires) φ310x1 00
    30  Drive Wheel × 1 (Solid Polyurethane Tire) φ343x140
    Drive 31  Drive Motor kw 6.4
    32  Lift Motor kw 12.5
    33  Battery V/Ah 48/560 48/700
    34  Steering System Electronics
    35  Service Brake Electromagnetism
    36  Controller Type AC
    37  Controller Manufacturer CURTIS
