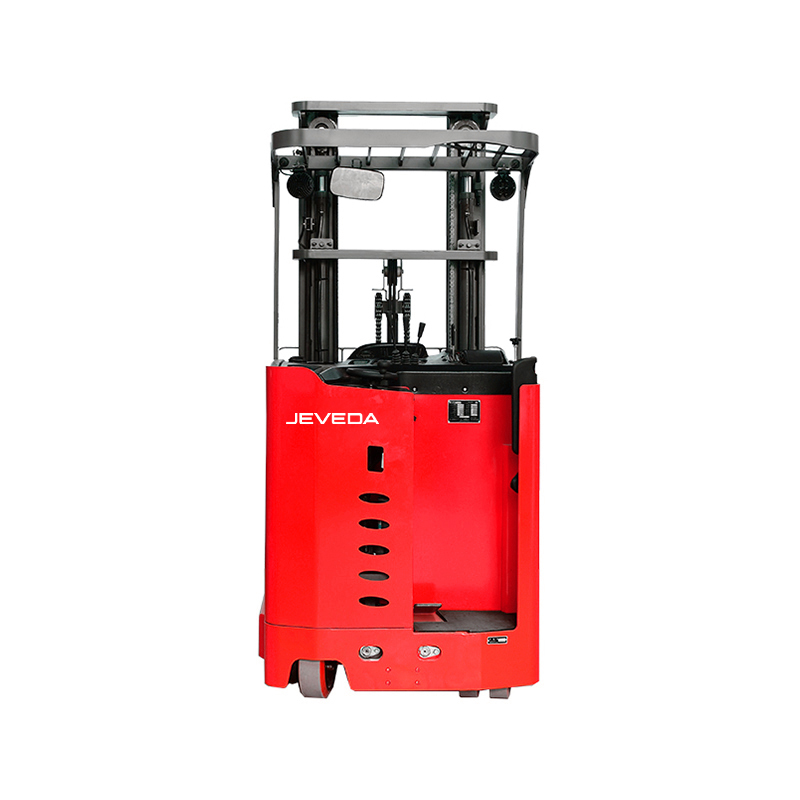

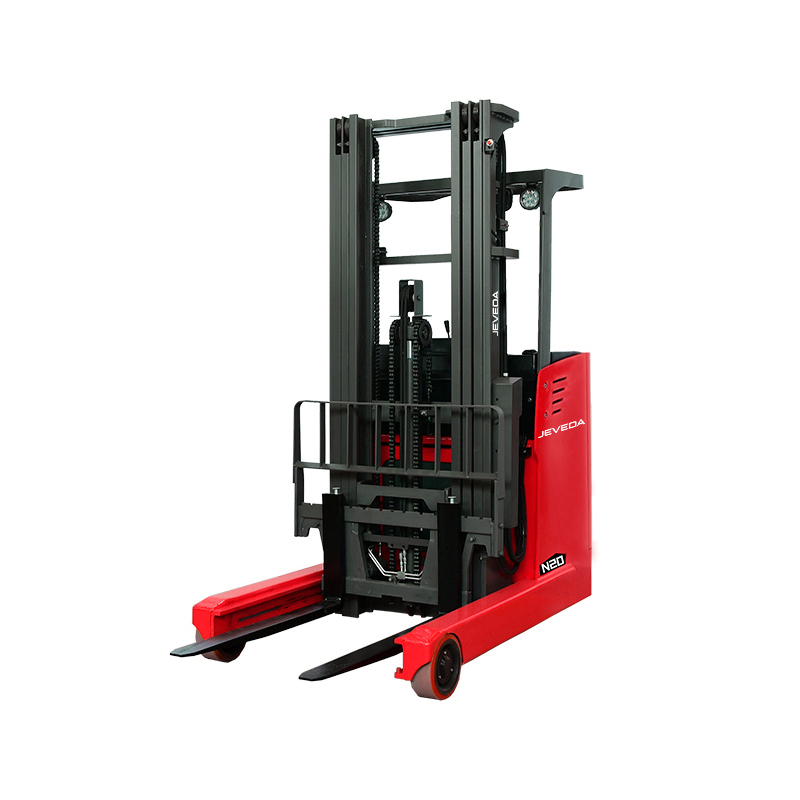

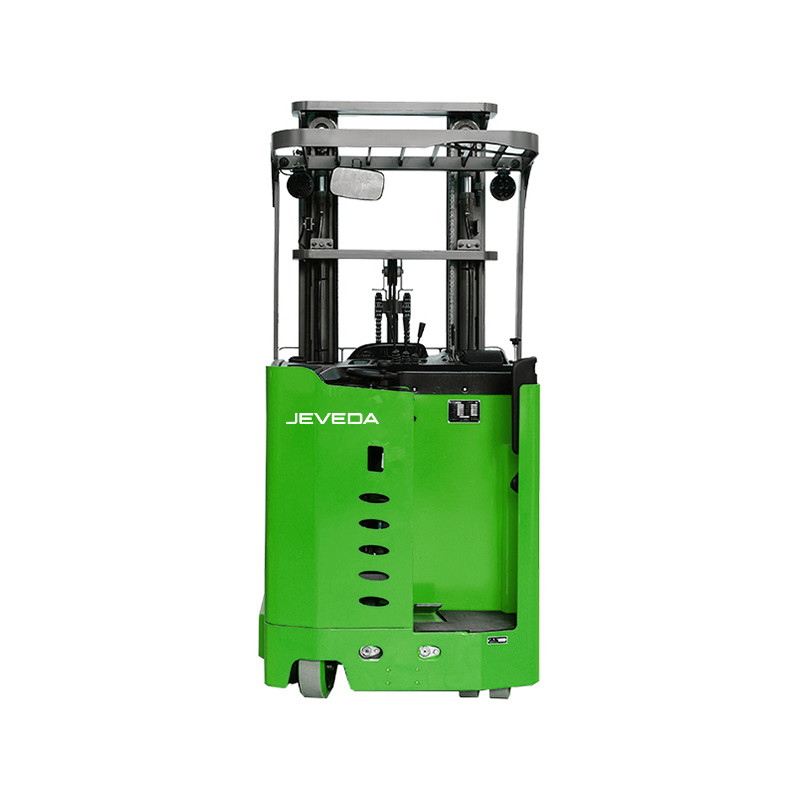

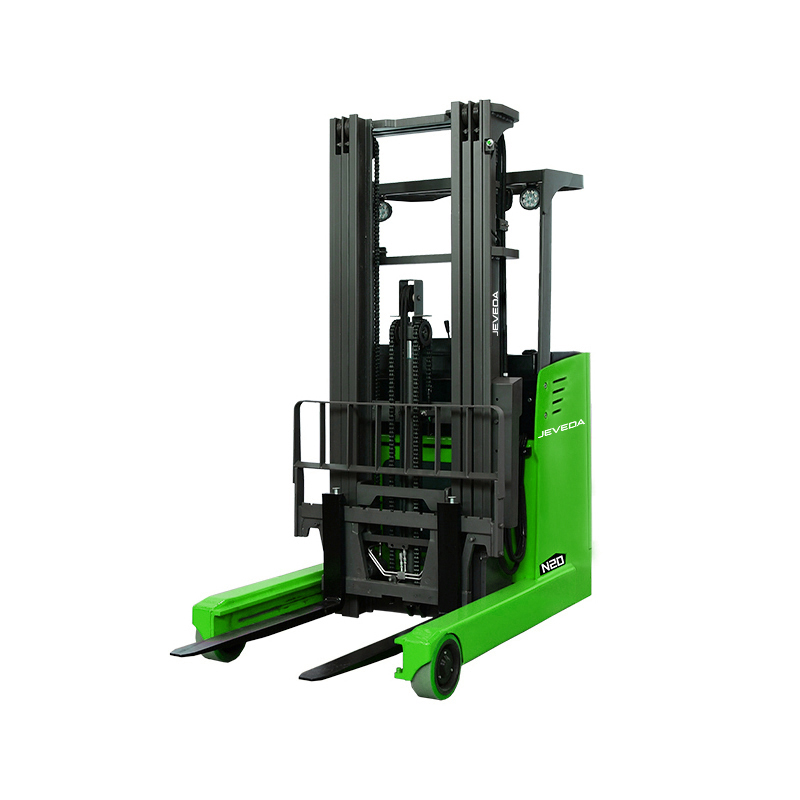

This agile truck is optimized for fast-paced environments where the operator must frequently mount and dismount, offering a slim profile that excels in tight warehouse corridors and rapid transport tasks
Custom Forklift Truck
| Specifications | 1 | Manufacturer | Jeveda | |||
| 2 | Engine Model | FBR15-NQC3 | FBR20-NQC3 | FBR25-NQC3 | ||
| 3 | Power Source | Battery | ||||
| 4 | Drive Type | Upright | ||||
| 5 | Rated Lifting Capacity | Q(kg) | 1500 | 2000 | 2500 | |
| 6 | Load Center Distance | C( mm) | 500 | |||
| 7 | Lifting Height | H3(mm) | 3000 | |||
| 8 | Free Lifting Height | H2(mm) | 380 | |||
| 9 | Fork Dimensions | L/W/T(mm) | 920×120×35 | 1070×120×40 | ||
| 10 | Mast Tilt Angle | Deg | 3°/5° | |||
| Dimensions | 1 | Overall Length | L1(mm) | 2270 | 2505 | 2685 |
| 12 | Rear Length | L2(mm) | 1350 | 1435 | ||
| 13 | Width | B1(mm) | 1090 | 1200 | ||
| 14 | Mast Height (Lowered) | H1(mm) | 2245 | |||
| 15 | Maximum Mast Height (Including Shelf Support) | H4(mm) | 4040 | |||
| 16 | Overhead Guard Height | H5(mm) | 2250 | |||
| 17 | Minimum Turning Radius | Wa(mm) | 1700 | 1750 | 1930 | |
| 18 | Ground Clearance | H6(mm) | 90 | |||
| 19 | Telescopic Reach | X(mm) | 560 | 500 | 670 | |
| 20 | Wheelbase | Y(mm) | 1470 | 1500 | 1680 | |
| 21 | Front Track Width | B2(mm) | 1000 | 1085 | ||
| 22 | Rear Track Width | B3(mm) | 575 | 560 | ||
| 23 | Right-Angle Stacking Aisle (1000x1200 pallet, forks positioned 1200mm apart) | Ast(mm) | 2785 | 2820 | 2920 | |
| 24 | Right-Angle Stacking Aisle (800x1200 pallet, forks positioned 800mm apart) | Ast(mm) | 2840 | 2930 | 2945 | |
| Performance | 25 | Travel Speed (Fully Loaded) | km/h | 9.5 | 8.5 | |
| 26 | Travel Speed (Unloaded) | km/h | 10.0 | 9.0 | ||
| 27 | Lifting Speed (Fully Loaded) | mm/s | 240 | |||
| 28 | Maximum Gradeability (Fully Loaded) | % | 10 | |||
| 29 | Net Weight (including battery) | Kg | 2450 | 2680 | 2780 | |
| 30 | Front Wheels × 2 (Solid polyurethane tires) | 250x85 | 250×120 | |||
| 31 | Drive Wheel × 1 (Solid polyurethane tire) | 343x114 | 343x135 | |||
| 32 | Caster Wheels × 2 (Solid polyurethane tires) | 178x76 | ||||
| Drive | 33 | Drive Motor | kw | 6 | ||
| 34 | Lift Motor | kw | 9.2 | 11 | ||
| 35 | Battery | V/Ah | 48/375 | 48/450 | ||
| 36 | Steering System | Electronics | ||||
| 37 | Service Brake | Electromagnetism | ||||
| 38 | Controller Type | AC | ||||
| 39 | Controller Manufacturer | ZAPI | ||||
| 40 | Operating Pressure | Mpa | 20.6 | |||
Our Company is China Compact Multi-Directional Stand-On Forklift Manufacturers and Compact Multi-Directional Stand-On Forklift Factory. Jeveda is a company in China that focuses on the manufacturing of small construction machinery and logistics equipment. Its core products include telehandlers, skid loaders, mini excavators, forklifts and so on. The company integrates R&D, production operations, manufacturing and after-sales services to build a complete and efficient industrial chain.
Jeveda's R&D team is composed of a group of senior experts who have been deeply involved in the construction machinery industry for more than 30 years. They have rich practical experience and profound professional knowledge. These experts have been deeply involved in the research and development of many products, including excavators, loaders, forklifts, etc. They have solid achievements in the design of the whole machine, and also pay attention to the aesthetics of the product, ergonomics and the optimization of the hydraulic mechanical system, and are committed to creating high-quality construction machinery products that are both practical and beautiful and in line with ergonomic principles.
In the current era of rapid transformation in the global construction machinery industry, environmental policies are becoming increasingly strict, and energy transition is imminent. Miniaturization and electrification of construction machinery have become a new trend in industry development. Jeveda has precisely targeted this field, focusing on the miniaturization and electrification of construction machinery and forklifts, and strives to be a competitive global supplier of overall solutions for miniaturized construction machinery.
