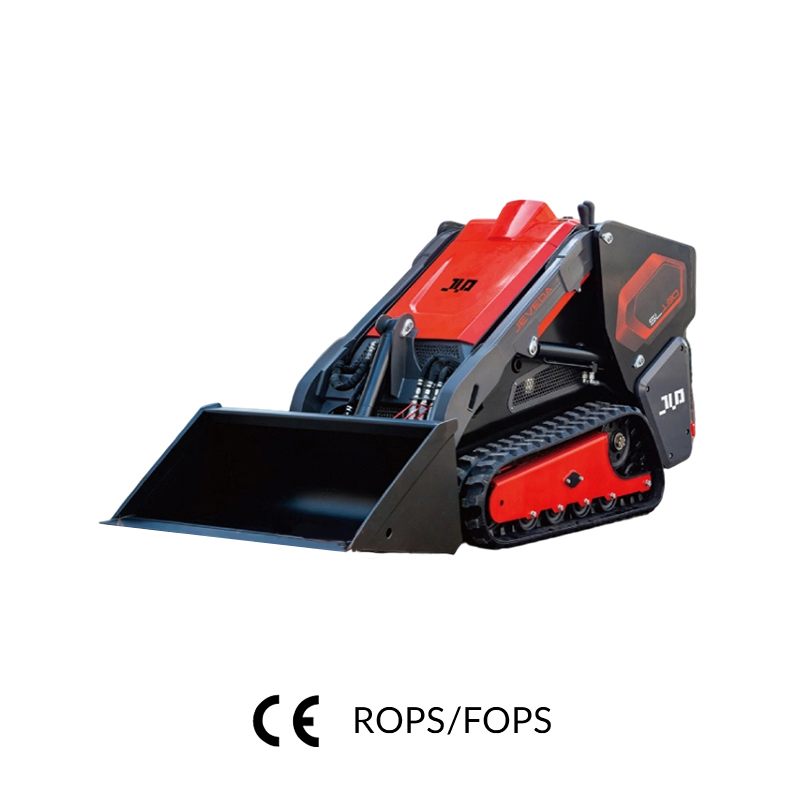

Skid Loader
The skid steer loader is compact, flexible construction machinery with zero-turn capability and quick attachment replacement, ideal for tight-space work. Its biggest advantage is multi-functionality: different attachments enable diverse operations to cut costs on multiple dedicated machines. It is widely used in municipal engineering, construction, farms and ranches for site cleaning, material handling and pen tidying; electric versions run quietly and won’t frighten animals.
The stand-on skid steer loader is a compact, highly agile, and versatile piece of construction machinery widely utilized in settings such as agriculture, construction sites, ports and docks, stations, and warehouse areas for the loading, unloading, or short-distance transport of bulk materials (including grain, soil, sand, aggregates, coal, waste, etc.).
Main Configuration: KUBOTA ENGINE, POCLAIN PUMP, WOLFF VALVE.
| Product Specifications | ||
| Model | / | JS130 |
| Engine Model | / | EURO V |
| Manufacturer'Gross Power Rating | hp(kw) | 23.4(17.2) |
| Rated Engine Speed | rpm | 3000 |
| Fuel | / | Diesel |
| Fuel Tank | gal(L) | 9.2(35) |
| Hydraulic-System | ||
| Ground Drive-Flow Rate | gpm(L/min) | 10(38.4) |
| Ground Drive-Pressure | psi(bar) | 2610(180) |
| Auxiliary-Flow Rate | gpm(L/min) | 12.6(48) |
| Auxiliary-Pressure | psi(bar) | 2900(200) |
| Hydraulic Reservoir | gal (L) | 8.5(32) |
| Performanc | ||
| Rated Load | Ib(kg) | 1300(590) |
| Machine Weight | Ib(kg) | 3881(1760) |
| Ground Drive Speed, Forward & Reverse | mph (km/h) | 3.4(5.4) |
| Dimensions | ||
| (A)Ground Contact Length | in(mm) | 38(965) |
| (B)Ground Clearance-Under Platform | in(mm) | 8(203) |
| (C)Length with/without Standard Bucket | in(mm) | 93/65(2362/165) |
| (D)Height | in(mm) | 52(1321) |
| (E)Operating Height | in(mm) | 101(2565) |
| (F)Height to Bucket Hinge Pin,Max | in(mm) | 81(2059) |
| (G)Dump Height with Standard Bucket | in(mm) | 59(1500) |
| (H)DumpAngle @Maximum Height | / | 36° |
| (I)Dump Reach @Maximum Height | in(mm) | 23.8(605) |
| (J)Rollback @Cary Position | / | 30° |
| (K)Ground Clearance | in(mm) | 5.8(147) |
| (L)Rollback Fully Raised @Maximum Height | / | 104° |
| (M)Width | in(mm) | 42(1067) |
| (N)Wheel Tread | in(mm) | 37(940) |
| (O)Width with Bucket | in(mm) | 48(1219) |
| (P)Turning Radius with Standard Bucket | in(mm) | 61(1549) |
| (Q)Turning Radius without Standard Bucket | in(mm) | 32(813) |
