Light weight Model: Characterized by its flexibility and maneuverability. It features a maximum load capacity of 1,000 kg and is suitable for use in private villas or narrow alleys.

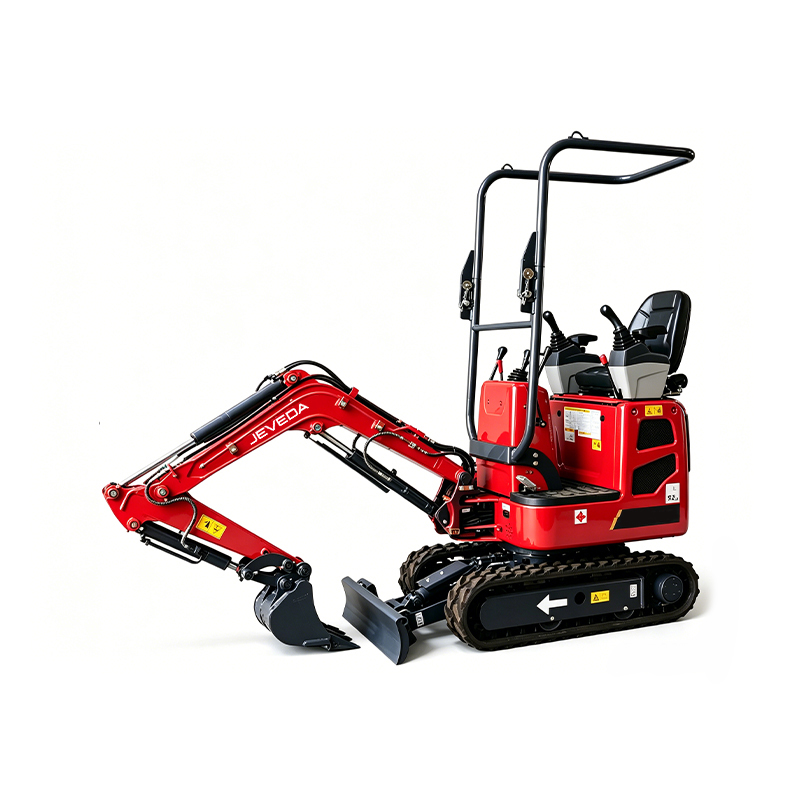

Custom Mini Excavator
Micro and mini excavators are compact pieces of construction machinery with an overall weight typically ranging between 1 and 3 tons. Characterized by their small size and high maneuverability, they are particularly well-suited for operations in space-constrained environments—such as orchards, indoor settings, and narrow passageways.
| Engine | |||||||
| Brand | YANMA/EURO Ⅲ | ||||||
| Model | 2TNV70-PSU | ||||||
| Type | 4-stroke,inline,water cooling | ||||||
| Power | KW/rpm | 7.2/2400 | |||||
| Max.torque | N·m/rpm | 33/1800 | |||||
| DisplaceMent | L | 0.57 | |||||
| Hydraulic system | |||||||
| Main pump type | quantitative gear pump | ||||||
| Max.flow | L/min | 9.6+9.6 | |||||
| System pressure | Mpa | 16 | |||||
| Pilot pump type | quantitative gear pump | ||||||
| Max.pilot flow | 9.6 | ||||||
| Pilot pressure | Mpa | 3.9 | |||||
| Specification | |||||||
| Operation weight | t | 1.01 | |||||
| Bucket capacity | m3 | 0.022 | |||||
| Performance | |||||||
| Boom deflection angle (R/L) | ° | 53/73 | |||||
| Swing speed | rpm | 8.2 | |||||
| Travel speed | km/h | 2.9/1.5 | |||||
| Gradeability | ° | 30 | |||||
| Ground pressure | kPa | 24.5 | |||||
| Oil tank capacity | |||||||
| Fuel | L | 10 | |||||
| Hydraulic oil | L | 9.5 | |||||
| Working range、Digging force | |||||||
| a | Max.digging height | mm | 2503 | ||||
| b | Max.dump height | mm | 1768 | ||||
| c | Max.digging depth | mm | 1446 | ||||
| d | Digging depth(2.44m horizontal) | mm | / | ||||
| e | Max.vertical digging depth | mm | 1084 | ||||
| f | Max.digging reach | mm | 2848 | ||||
| g | Max.ground digging reach | mm | 2738 | ||||
| h | Min.front swing radius | mm | 1349 | ||||
| i | Max.lifting height of dozer blade | mm | 225 | ||||
| Max.digging depth of dozer blade | mm | 225 | |||||
| Digging force of bucket | kN | 9.4 | |||||
| Digging force of arm | KN | 5.8 | |||||
| Overall dimension | |||||||
| Boom length | mm | 1350 | G | Track ground length | mm | 975 | |
| Arm length | mm | 700 | H | Track length | mm | 1299 | |
| A | Total length | mm | 2640 | 1 | Track gauge | mm | 570/820 |
| B | Total height | mm | 2276 | J | Track width | mm | 750/1000 |
| C | Total width | mm | 750/1000 | K | Track shoe width | mm | 180 |
| D | Counter ground height | mm | 419 | L | Cab roof height | mm | 2276 |
| E | Mn.ground height | mm | 131 | M | Engine hood height | mm | 1072 |
| F | Tail swing radius | mm | 750 | N | Turntable height | mm | 740 |
Our Company is China JE10 Mini Precision Mini Excavator Manufacturers and JE10 Mini Precision Mini Excavator Factory. Jeveda is a company in China that focuses on the manufacturing of small construction machinery and logistics equipment. Its core products include telehandlers, skid loaders, mini excavators, forklifts and so on. The company integrates R&D, production operations, manufacturing and after-sales services to build a complete and efficient industrial chain.
Jeveda's R&D team is composed of a group of senior experts who have been deeply involved in the construction machinery industry for more than 30 years. They have rich practical experience and profound professional knowledge. These experts have been deeply involved in the research and development of many products, including excavators, loaders, forklifts, etc. They have solid achievements in the design of the whole machine, and also pay attention to the aesthetics of the product, ergonomics and the optimization of the hydraulic mechanical system, and are committed to creating high-quality construction machinery products that are both practical and beautiful and in line with ergonomic principles.
In the current era of rapid transformation in the global construction machinery industry, environmental policies are becoming increasingly strict, and energy transition is imminent. Miniaturization and electrification of construction machinery have become a new trend in industry development. Jeveda has precisely targeted this field, focusing on the miniaturization and electrification of construction machinery and forklifts, and strives to be a competitive global supplier of overall solutions for miniaturized construction machinery.
