Home / Products / Forklift Truck / Rough Terrain 4WD Forklift 2.5T-3.5T

Custom Forklift Truck

A forklift is a self-propelled industrial special equipment equipped with a mast and forks, designed for material stacking and short-distance in-site transportation. It greatly improves logistics efficiency. JEVEDA’s forklift product lineup covers internal combustion forklifts, electric forklifts, and warehouse forklifts to meet diverse operational needs.

Forklift Truck

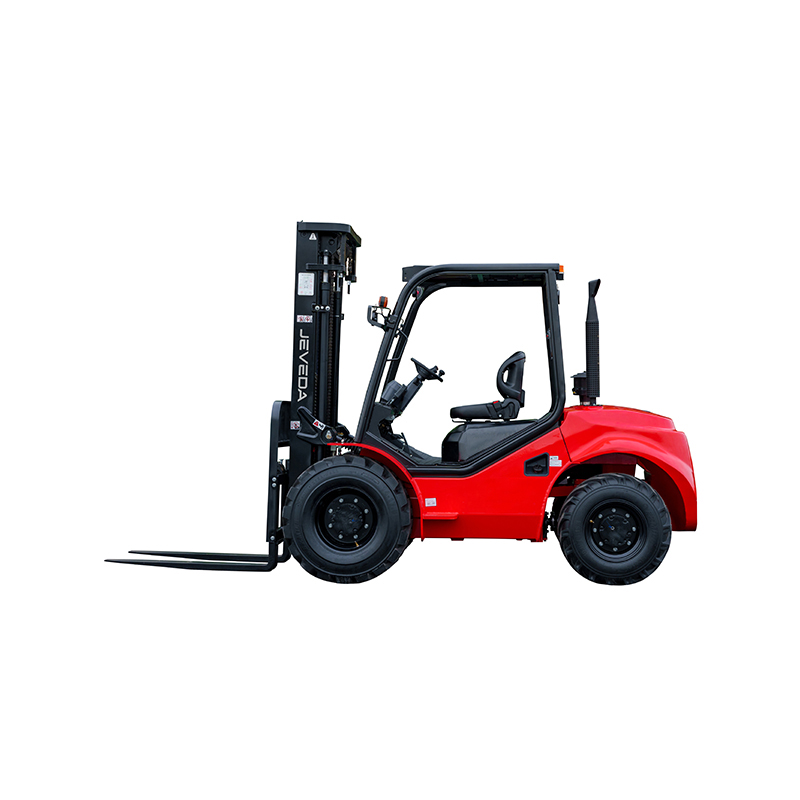

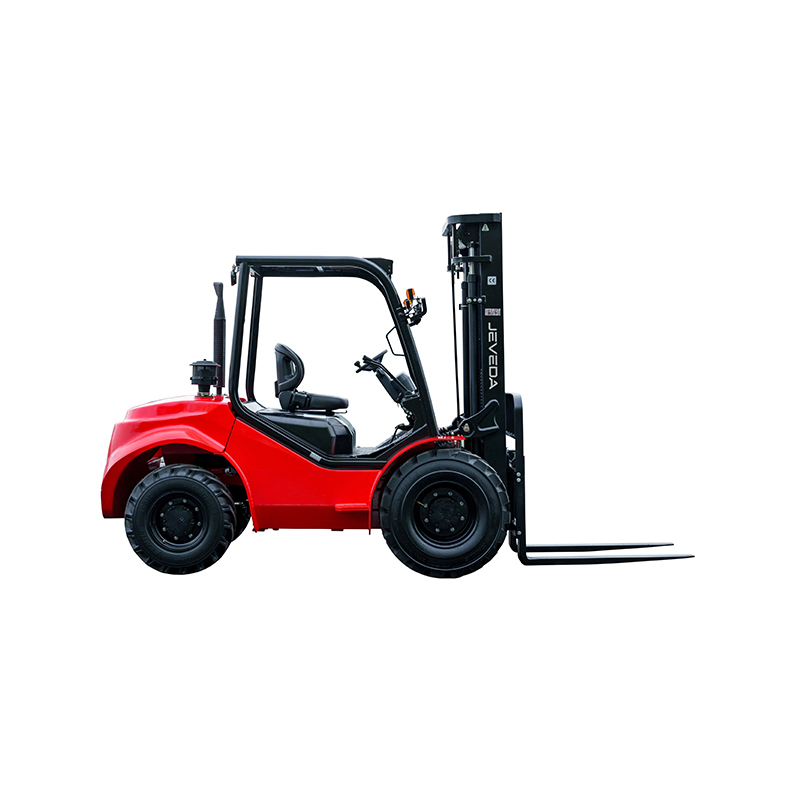

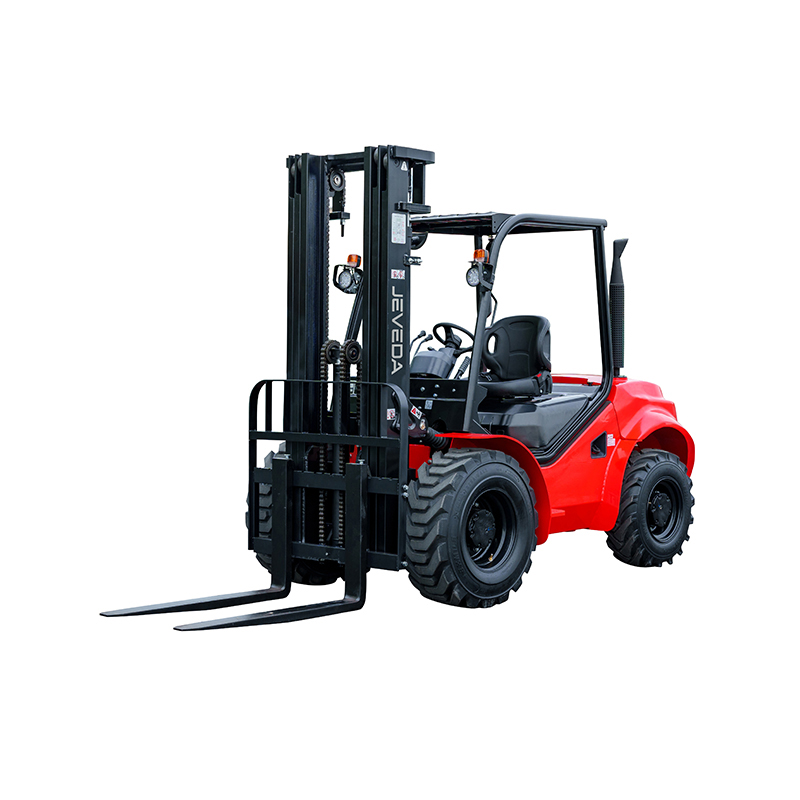

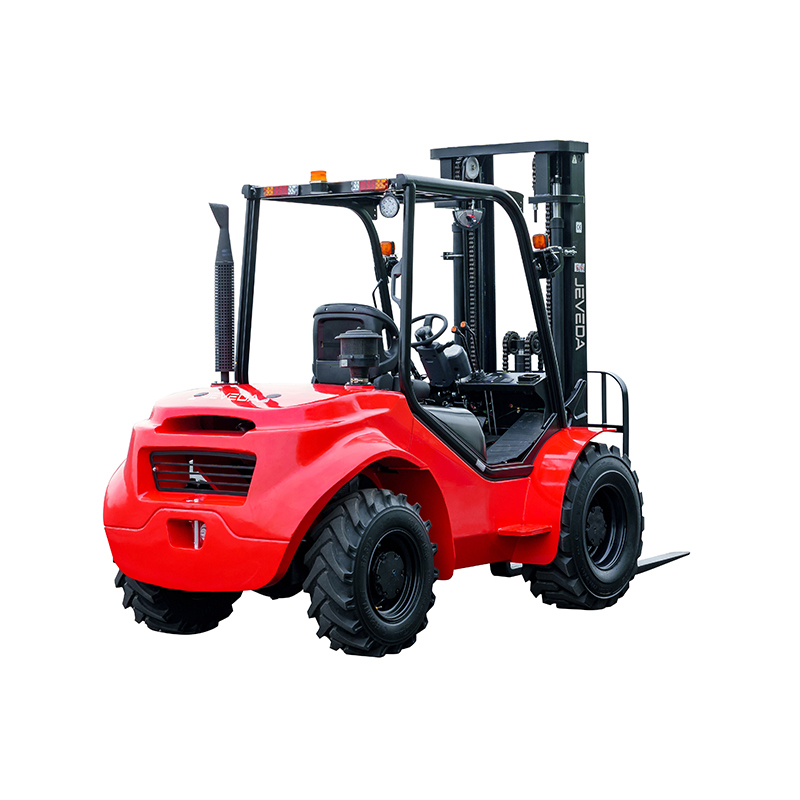

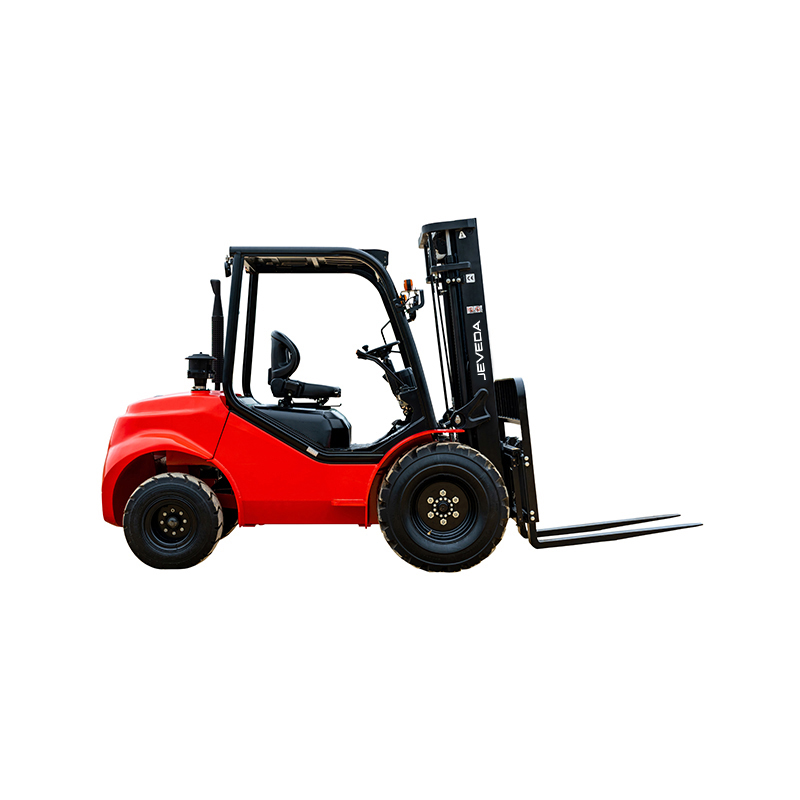

Rough Terrain 4WD Forklift 2.5T-3.5T

Product Overview: A fully capable four-wheel-drive forklift designed for maximum traction in severe and demanding outdoor conditions.
Key Features: The 4WD system provides superior power distribution to all four wheels, ensuring the vehicle can power through deep mud, loose gravel, and steep inclines without losing grip.
Ideal Applications: Perfect for the most extreme rugged terrains, such as remote mining sites, muddy heavy-construction zones, and complex off-road logistics.

ASK FOR A QUOTE
  • PARAMETER
    General
    1 Madel FD25T-DNJM1 FD35T-DNJM1 FD25T-DNJE1 FD35T-DNJE1 FD25T-DNJS1 FD35T-DNJS1
    2 Power Type Diesel
    3 Rated Load Capacity Q(kg) 2500  3500  2500  3500  2500  3500
    4  Load Centre C(mm) 500
    Characteristic & Dimension
    1 Rated Lift Height H3(mm) 3000
    2 Free Lift Height H2(mm) 160  165   160 165  160  165
    3  Fork Size (LxWxT) mm 1070*122*45 1070*122*50 1070*125*50 1070*125*50 1070*122*45 1070*125*50
    4  Mast Tilt Angle (F/R, d/β°) Deg 10°/12°
    5  Fork Overhang (Wheel Center to Fox Face) X1(mm) 585  605 585 605  585  605
    6  Rear Overlay X2(mm) 615
    7  Ground Clearance (Bottom of Mast) H7(mm) 275
    8  Length of Face of Fork (Without Fork) L1(mm) 3080  3100   3080 3100  3080  3100
    9  Overall Width B1(mm) 1600
    10  MastLowered Hegt H1(mm) 2215  2330 2215 2330  2215  2330
    11  Mast Extended Height (With Backrest) H4(mm) 4122  4305 4122  4305  4122  4305
    12  Ovemtead Guad Hebht H5(mm)  2256 2276  2256 2276  2256  2276
    13  Tumig Radus (OAsite) Wa(mm) 3150
    14  Mn Aisle il fr palts Ast(mm) 4735  4750 4735  4750  4735  4750
    Performance
    1  Rare Sped (Laen Urlaten) km/h 17/18
    2  Ring Send Laen Utaden) mm/sec 560/600 470/500 600/650 480/510 600/650 480/510
    3  Loweing Speed Laden/Unladen mm/sec No Load≥300 Full Load≤600
    4  Max Draught (Laden/Unladen) KN 38
    5  Max Grasseiay (Laden) % 50  45 50 45  50  45
    Chassis
    1  Tye (Fmomtx2) mm 12-16.5-12PR 14-17.5-14PR 12-16.5-12PR 14-17.5-14PR 12-16.5-12PR 14-17.5-14PR
    2  Tyre (Rarx 27 mm 10.0/75-15.3
    3  Front Tread B2(mm) 1250
    4  Rear Treed B3(mm) 1190
    5  WheeIbase Y(mm) 1880
    Weight
    1  Total Weight kg 4820  5450  4820  5450  4820  5450
    2  Front Axle Weight Distribution (Full Load) kg 6592  7764  6592  7764  6592  7764
    3  Rear Axle Weight Distribution (Full Load) kg 728  1186  728  1186  728  1186
    4  Front axle Weight Distribution (No Load) kg 2165  2430  2165  2430  2165  2430
    5  Rear Axle Weight Distribution (No Load) kg 2655  3020  2655  3020  2655  3020
    Power & Transmission
    1  Batey V/Ah   12/90
    2  Eengne Mode S4S 4TNE98 D24(EU Stage V /Tier 4 Fina)
    3  Erghe Marulacu MTSUBISHI YANMAR HYUNDAI
    4  Rated Output / r.p.m. kW 35.3/2250 43/2300 48.2/2600
    5  Rated Torque / r.p.m. N.m 177/1700 177.6-196.3/1700 214/1600
    6  No.of Cylinder 4
    7  Bore x Stroke mm 94×120 98×110 90×94
    8  Dispacement CC 3.331  3.319  2.392
    9  Fuel Tank Capacity L 55
    10  Transmission Type HYDRAULIC
    11  Transmission Stage (FWD/RVS) 2/1
    12  Operating Pressure (For Attachments) Mpa 20
    Specifications and characteristics are subject to change without notice.

    Mast Type Mast Name Max. Fork Height (mm) Load Capacity (kg) Overall Height (mm) Free Lift (mm) Tilt Angle (°) Weight (kg)
    Lowered Extended Without Backrest With Bracket
    Without Backrest With Backrest
    Wide View mast ensures super visibility. M300 3000 2.5T 3.5T 2.5T 3.5T 2.5T 3.5T 2.5T 3.5T 2.5T 3.5T 2.5T 3.5T 2.5T 3.5T
    2500 3500 2235 2330 3675 3840 4130 4320 105 165 105 165 10°/12° 4820 5450
    M330 3300 2500 3500 2385 2480 3975 4140 4430 4620 105 165 105 165 10°/12° 4850 5480
    M350 3500 2500 3500 2485 2580 4175 4340 4630 4820 105 165 105 165 10°/12° 4870 5500
    M370 3700 2500 3500 2585 2680 4375 4540 4830 5020 105 165 105 165 10°/12° 4880 5510
    M400 4000 2500 3400 2785 2880 4675 4840 5130 5320 105 165 105 165 10°/12° 4920 5550
    M450 4500 2200 3100 3035 3130 5175 5340 5630 5820 105 165 105 165 10°/12° 5015 5645
    3 Stage
    Full Free
    Wide View Mast    		 TFM400 4000 2500 3400 2080 2210 4767 4845 5222 5232 1345 1394 890 1010 10°/12° 5095 5725
    TFM435 4350 2400 3000 2205 2335 5115 5205 5570 5590 1470 1519 1015 1135 10°/12° 5135 5765
    TFM470 4700 2100 2800 2320 2450 5455 5545 5910 5930 1585 1634 1130 1250 10°/12° 5170 5800
    TFM500 5000 1900 2600 2455 2585 5765 5855 6220 6240 1720 1769 1265 1385 6°/6° 5205 5835
    TFM550 5500 1500 2300 2620 2750 6265 6350 6720 6735 1885 1934 1430 1550 6°/6° 5250 5880
    TFM600 6000 1200 1900 2805 2935 6765 6855 7220 7240 2070 2119 1615 1735 6°/6° 5305 5935
    With side shifter, load capacity subtract 200Kg.
