Home / Products / Forklift Truck / Rough Terrain 2WD Forklift 2.5T-3.5T

Custom Forklift Truck

A forklift is a self-propelled industrial special equipment equipped with a mast and forks, designed for material stacking and short-distance in-site transportation. It greatly improves logistics efficiency. JEVEDA’s forklift product lineup covers internal combustion forklifts, electric forklifts, and warehouse forklifts to meet diverse operational needs.

Forklift Truck

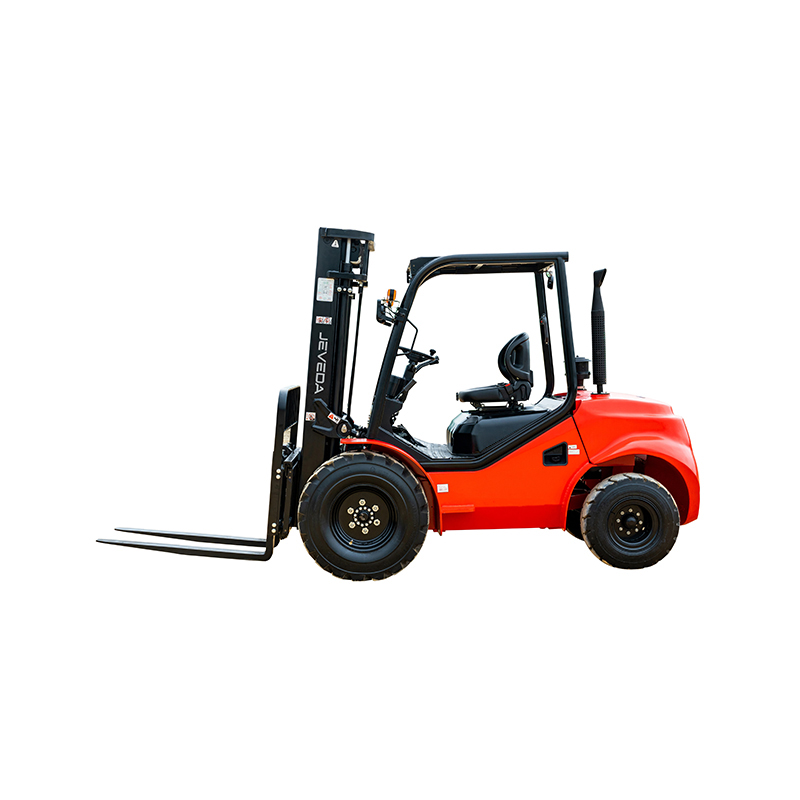

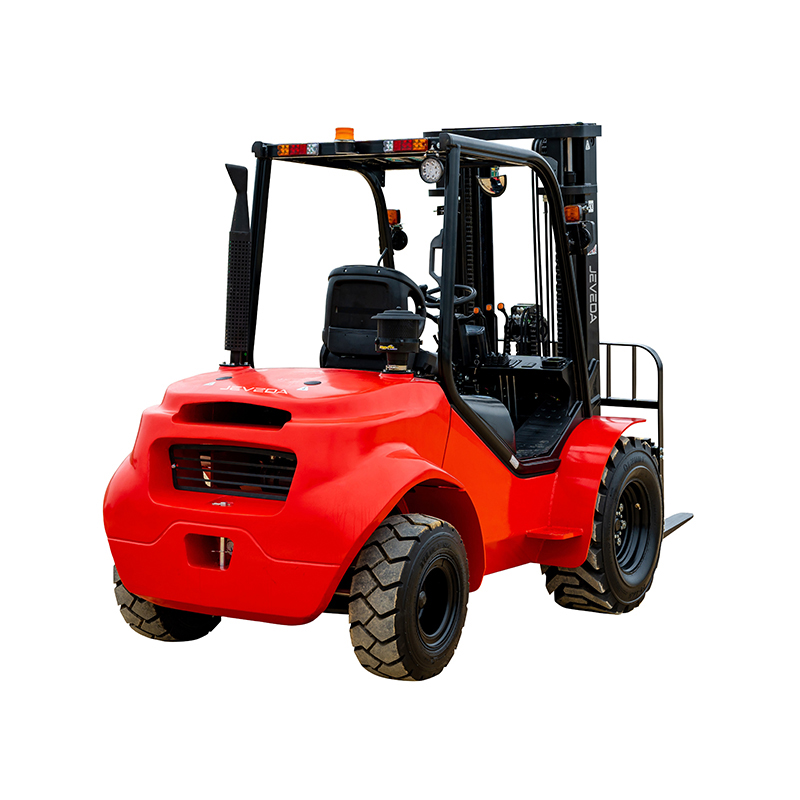

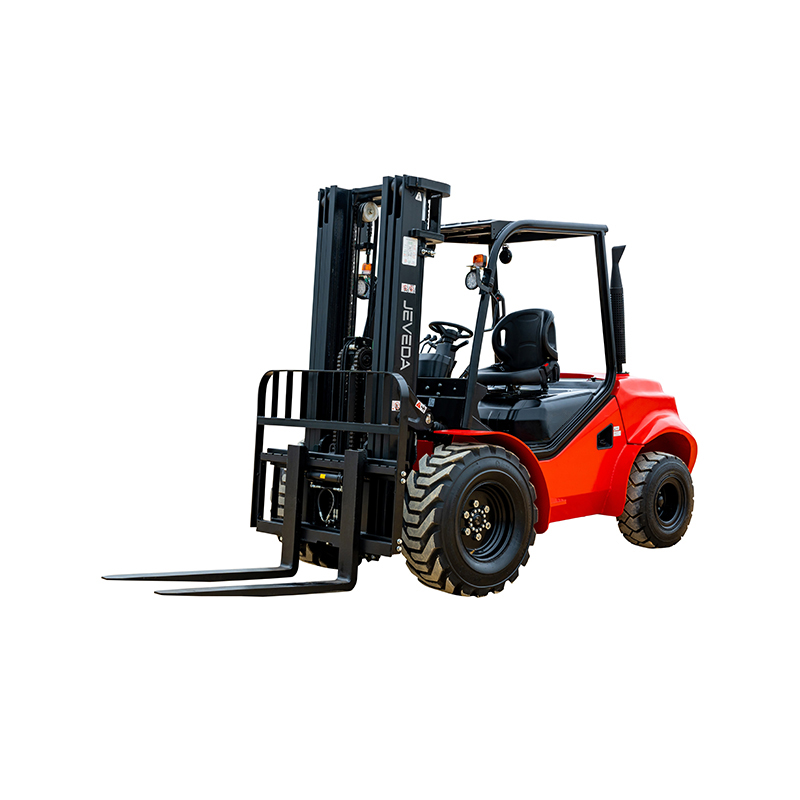

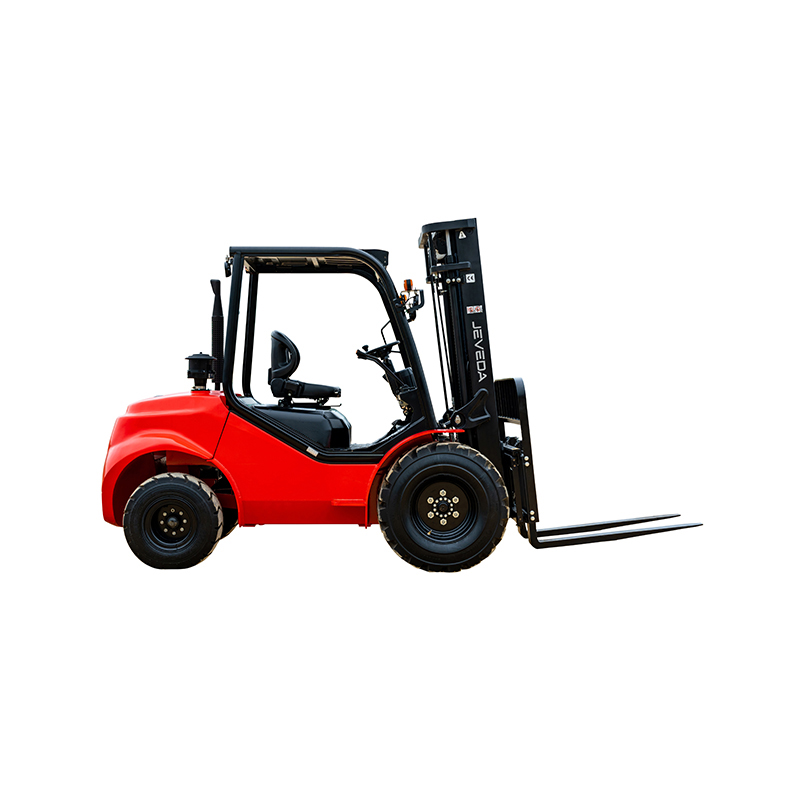

Rough Terrain 2WD Forklift 2.5T-3.5T

Product Overview: A two-wheel-drive internal combustion forklift specifically engineered for uneven and unpaved outdoor surfaces.
Key Features: It prioritizes high ground clearance and features robust, deep-tread tires. This configuration ensures agile maneuverability while maintaining the necessary traction for non-standard terrains.
Ideal Applications: Best suited for moderate outdoor environments like construction sites, agricultural farms, and lumber yards where standard forklifts cannot operate efficiently.

ASK FOR A QUOTE
  • PARAMETER
    General
    1  Model FD25T-CNJM1 FD35T-CNJM1 FD25T-CNGA7 FD35T-CNGA7 FD25T-CNJE1 FD35T-CNJE1 FD25T-CNJS1 FD35T-CNJS1
    2  Power Type Diesel
    3  Rated Load Capacity Q(kg) 2000 3500  2500  3500  2500  3500  2500  3500
    4  Load Centre C(mm) 500
    Characteristic & Dimension
    1  Rated Lift Height H3(mm) 3000
    2  Free Lift Height H2(mm) 160  165  160  165  160  165  160  165
    3  Fork Size (LxWxT) mm 1070*122*45 1070*125*50 1070*122*45 1070*125*50 1070*122*45 1070*125*50 1070*122*45 1070*125*50
    4  Mast Tilt Angle (F/R, d/β°) deg 10°/12°
    5  Fork Overhang (Wheel Center to Fox Face) X1(mm) 585  605  585  605  585  605  585  605
    6  Rear Overlay X2(mm) 520
    7  Ground Clearance (Bottom of Mast) H7(mm) 275
    8  Length of Face of Fork (Without Fork) L1(mm) 2985  3005  2985  3005  2985  3005  2985  3005
    9  Overall Width B1(mm) 1600
    10  MastLowered Hegt H1(mm) 2215  2330  2215  2330  2215  2330  2215  2330
    11  Mast Extended Height (With Backrest) H4(mm) 4122  4305 4122  4305 4122  4305  4122  4305
    12  Ovemtead Guad Hebht H5(mm) 2255  2276  2256  2276  2566  2276  2256  2276
    13  Tumig Radus (OAsite) Wa(mm) 2900
    14  Mn Aisle il fr palts Ast(mm) 4730
    Performance
    1  Rare Sped (Laen Urlaten) km/h 17/18
    2  Ring Send Laen Utaden) mm/sec 560/600  450/540  560/600  450/540  560/600  450/540  560/600  450/540
    3  Loweing Speed Laden/Unladen) mm/sec No Load≥300 Full Load≤600
    4  Max Draught (Laden/Unladen) KN 21/17
    5  Max Grasseiay (Laden) % 20
    Chassis
    1  Type (Fmomtx2) mm 12-16.5-12PR 14-17.5-14PR 12-16.5-12PR 14-17.5-14PR 12-16.5-12PR 14-17.5-14PR 12-16.5-12PR 14-17.5-14PR
    2  Tyre (Rarx 27 mm 27X10-12-12PR(Tube Tyres)/27X10.5-15(Tubeless Tyres)
    3  Front Tread B2(mm) 1250
    4  Rear Treed B3(mm) 1205
    5  WheeIbase Y(mm) 1880
    Weight
    1  Total Weight kg 4215  5135  4215  5135  4215  5135  4215  5135
    2  Front Axle Weight Distribution (Full Load) kg 5780  7680  5780  7680 5780  7680  5780  7680
    3  Rear Axle Weight Distribution (Full Load) kg 935  955  935  955  935  955  935  955
    4  Front axle Weight Distribution (No Load) kg 1820  2110  1820  2110 1820  2110  1820  2110
    5  Rear Axle Weight Distribution (No Load) kg 2395  3025  2395  3025  2995  3025  2395  3025
    Power & Transmission
    1  Batey V/Ah 12/90
    2  Eengne Mode S4S A498BPG 4TNE98 D24(EU Stage V/Tier 4 Final)
    3  Erghe Marulacu MITSUBISHI XINCHAI YANMAR HYUNDAI
    4  Rated Output / r.p.m. kW 35.3/2250 45/2500 43/2300 48.2/2600
    5  Rated Torque / r.p.m. N.m 177/1700 193/1800 177.6-196.3/1700 214/1600
    6  No.of Cylinder 4
    7  Bore x Stroke mm 94×120 98×105 98×110 90×94
    8  Dispacement CC 3.33 1 3.168  3.319  2.392
    9  Fuel Tank Capacity L 55
    10  Transmission Type HYDRAULC
    11  Transmission Stage (FWD/RVS) 1/1
    12  Operating Pressure (For Attachments) Mpa 20
    Specifications and characteristics are subject to change without notice.

    MastType MastName Max
    Fork Height
    (mm)    		 Load Capacity (kg) Overall Height (mm) Free Lift (mm) Tilt Angle
    (Single)    		 Weight(Kg)
    Lowered Extended Without Backrest With Backrest
    Without Backrest With Backrest
    2.5T 3.5T 2.5T 3.5T 2.5T 3.5T 2.5T 3.5T 2.5T 3.5T 2.5T 3.5T 2.5T 3.5T
    Wide View mast ensures super visibility. M300 3000  2500  3500  2235  2330  3675  3840  4130  4320  105  165  105  165  10°/12° 4350  5135
    M330 3300  2500  3500  2355  2480 3975  4140  4430  4620  105  165  105  165  10°/12° 4380  5165
    M350 3500  2500  3500  2455  2580  4175  4340  4630  4820  105  165  105  165  10°/12° 4400  5185
    M370 3700  2500  3500  2555  2680  4375  4540  4830  5020  105  165  105  165  10°/12° 4410  5195
    M400 4000  2500  3400  2785  2880  4675  4840  5130  5920  105  165  105  165  10°/12° 4450  5235
    M450 4500  200  3100  3035  3130  5175  5340  5630  5820  105 165  105  165  10°/12° 4545  5330
    3 Stage
    Full Free
    Wide View Mast    		 TFM400 4000  2500  3400  2050  2210  4767  4845  5222  5232  1345  1394  890  1010  10°/12° 4575  5360
    TFM435 4350  2400  3000  2265  2335  5115  5205  5570  5590  1470  1519  1015  1135  10°/12° 4615  5400
    TFM470 4700  2100  2800  2320  2450  5455  5545  5910  5930  1585  1634  1130  1250  10°/12° 4650  5435
    TFM500 5000  1900  2600  2455  2585  5765  5855  6220  6240  1720  1769  1265  1385  6°/6° 4685  5470
    TFM550 5500  1500  2300  2620  2750  6265  6350  6720  6735  1885  1934  1430  1550  6°/6° 4730  5515
    TFM600 6000  1200  1900  2805  2935  6765  6855  7220  7240  2070  2119  1615  1735  6°/6° 4785  5570
    With side shifter, load capacity subtract 200Kg.
