Home / Products / Forklift Truck / Heavy Duty Diesel Forklift 5.0T-7.0T

Forklift Truck

A forklift is a self-propelled industrial special equipment equipped with a mast and forks, designed for material stacking and short-distance in-site transportation. It greatly improves logistics efficiency. JEVEDA’s forklift product lineup covers internal combustion forklifts, electric forklifts, and warehouse forklifts to meet diverse operational needs.

Forklift Truck

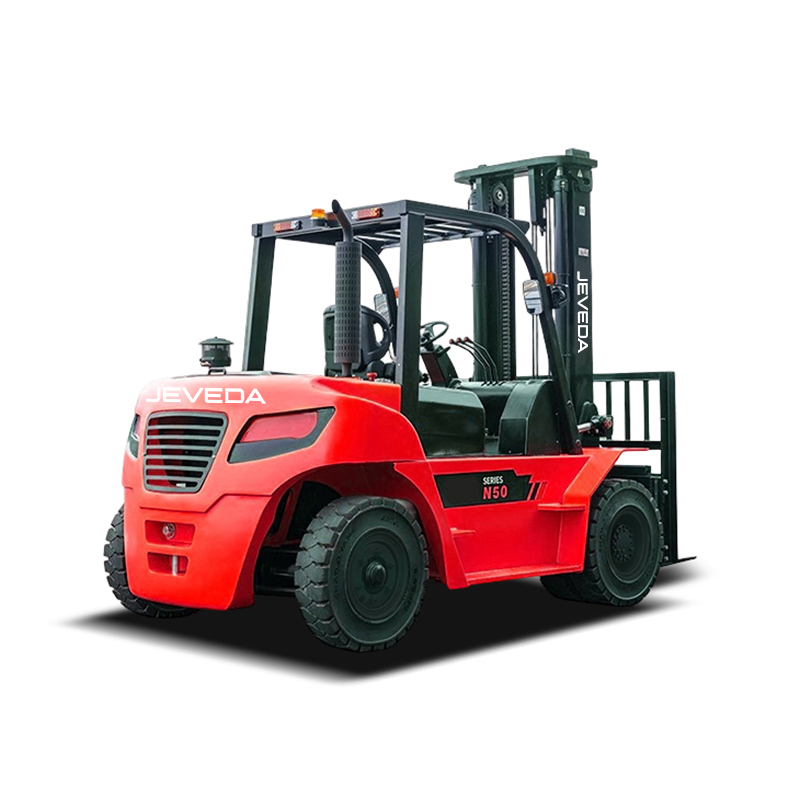

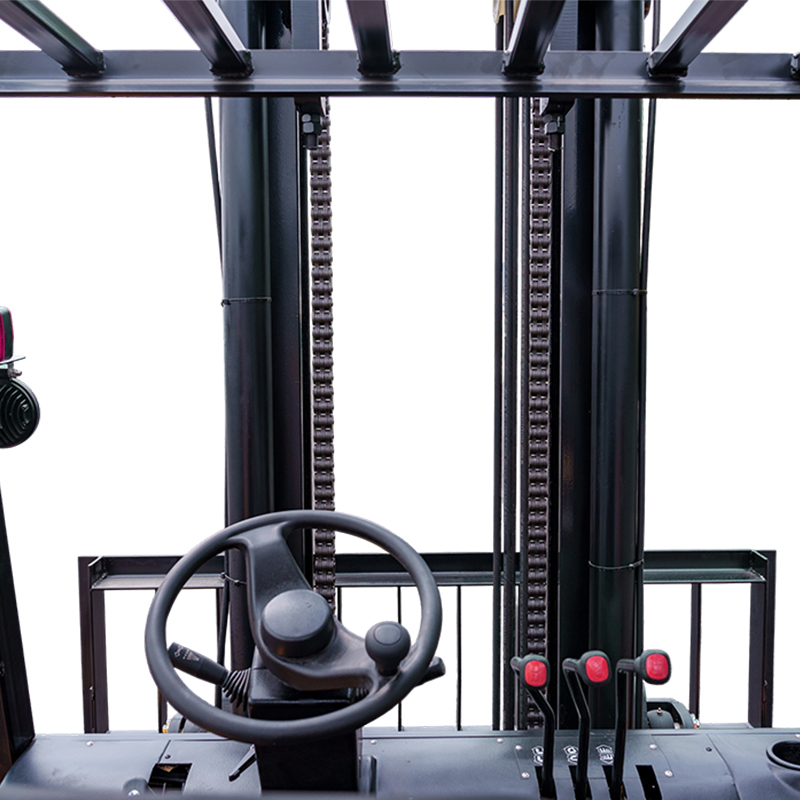

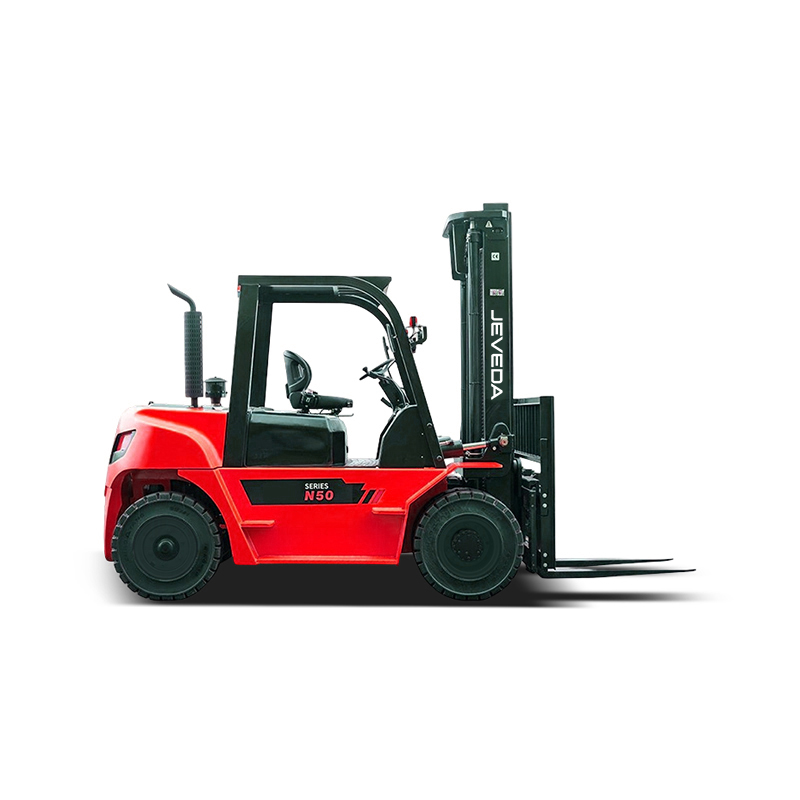

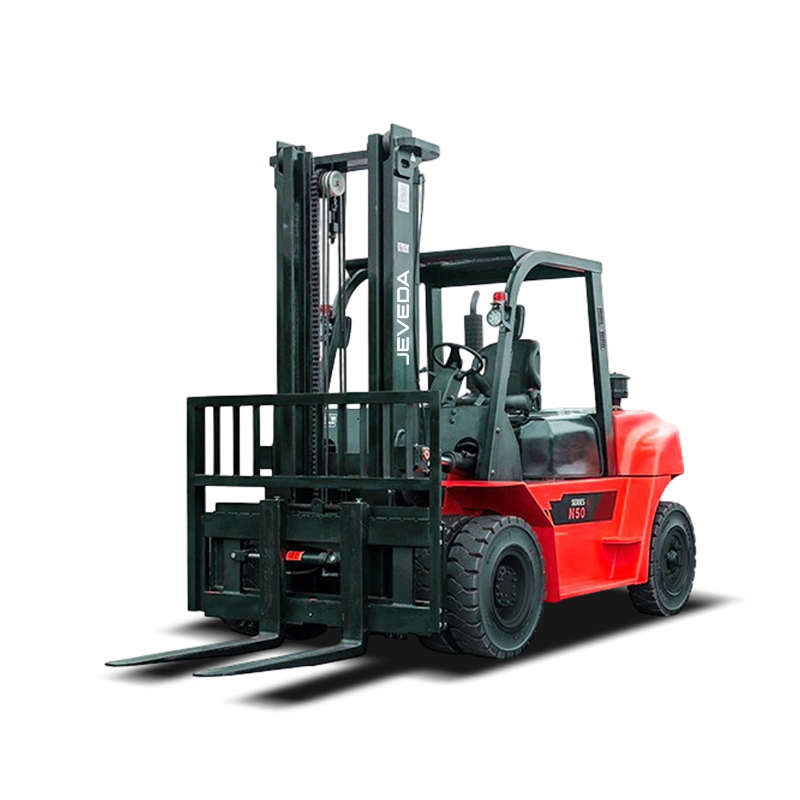

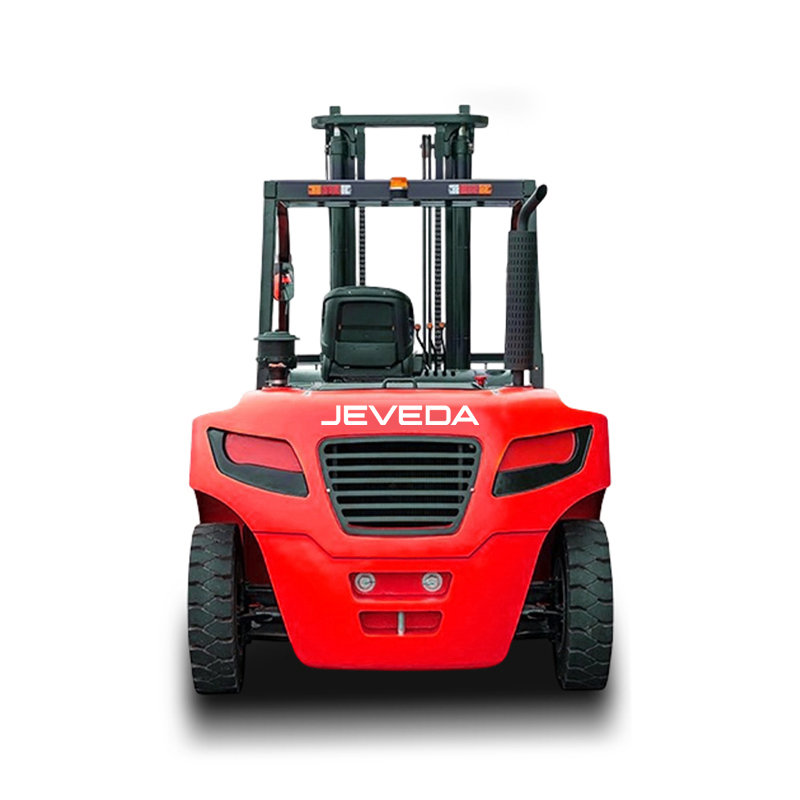

Heavy Duty Diesel Forklift 5.0T-7.0T

Heavy Duty Diesel Forklift 5.0T-7.0T

Product Overview: A robust industrial forklift built for large-scale, heavy material flow and rigorous daily use.

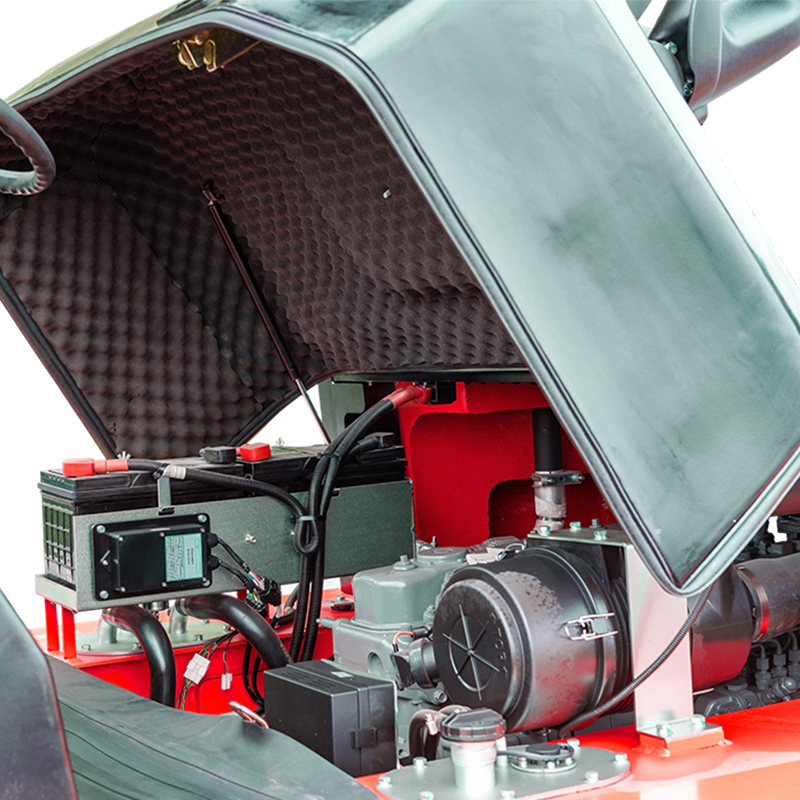

Key Features: Constructed with a reinforced frame, heavy-duty drive axle, and a larger displacement engine. Its extended wheelbase provides the exceptional counterweight stability needed for bulky loads.
Ideal Applications: Commonly utilized in steel mills, concrete manufacturing, large stone markets, and heavy machinery transport sectors.

  • Heavy Duty Diesel Forklift 5.0T-7.0T
  • Heavy Duty Diesel Forklift 5.0T-7.0T
  • Heavy Duty Diesel Forklift 5.0T-7.0T
  • Heavy Duty Diesel Forklift 5.0T-7.0T
  • Heavy Duty Diesel Forklift 5.0T-7.0T
  • Heavy Duty Diesel Forklift 5.0T-7.0T
  • Heavy Duty Diesel Forklift 5.0T-7.0T
Contact Us
  • PARAMETER
    Model FD50T-
    NGHI    		 FD70T-
    NGHI    		 FD50T-
    NJB3    		 FD70T-
    NJB3    		 FD50T-
    NGPI    		 FD70T-
    NGPl    		 FD50T-
    NJR1    		 FD70T-
    NJR1    		 FD50T-
    NJM4    		 FD70T-
    NJM4
    Rated Load Capacity Q(kg) 5000  7000  5000  7000  5000  7000  5000  7000  5000  7000
    Load Centre C(mm) 600  600  600  600  600  600  600  600  600  600
    Length to Face of Fork
    (Without Fork)    		 L1(mm) 3477  3547  3477  3547  3477  3547  3477  3547  3477  3547
    Overall Width B1( mm) 1995  1995  1995  1995  1995  1995  1995  1995  1995  1995
    Overhead Guard Height H5(mm) 2450  2450  2450  2450  2450  2450  2450  2450  2450  2450
    Turning Radius
    (Outside)    		 Wa(mm) 3280  3360  3280  3360  3280  3360  3280  3360  3280  3360
    Travel Speed
    (No Load)    		 Km/h 20  20  20  20  20  20  20  20  20  20
    Max.Gradeability
    ( Full Load)    		 % 32  24  35  29  35  29  35  29  35  29
    Wheelbase Y( mm) 2250  2250  2250  2250  2250  2250  2250  2250  2250  2250
    Total Weight Kg 8260  9760  8260  9760  8260  9760  8260  9760  8260  9760
    Engine Model EURO III EURO III EURO III EURO III EURO III EURO III EURO III EURO III EURO III EURO III
