A forklift is a self-propelled industrial special equipment equipped with a mast and forks, designed for material stacking and short-distance in-site transportation. It greatly improves logistics efficiency. JEVEDA’s forklift product lineup covers internal combustion forklifts, electric forklifts, and warehouse forklifts to meet diverse operational needs.

Forklift Truck

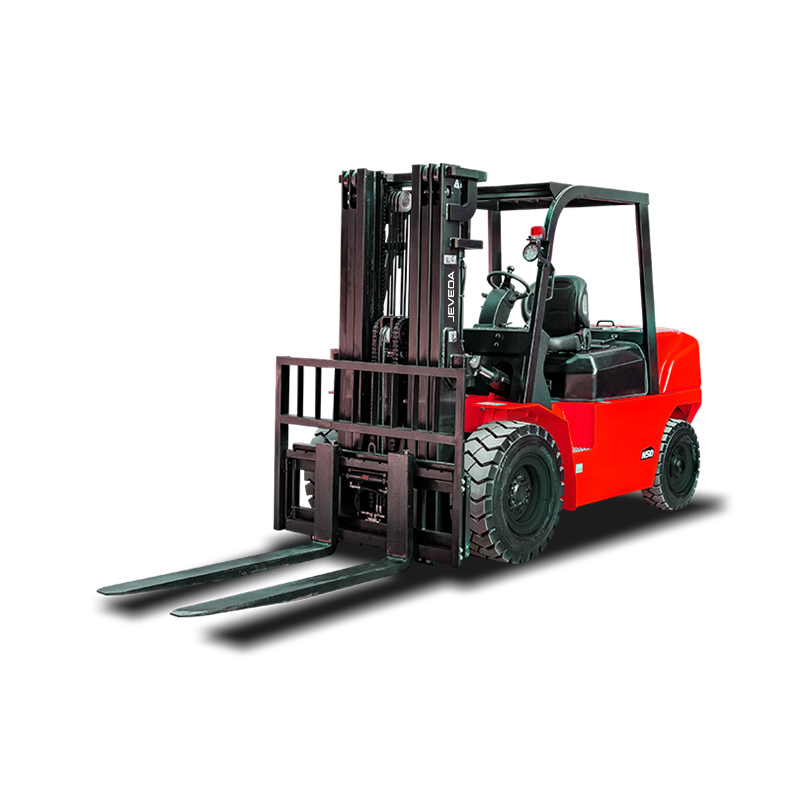

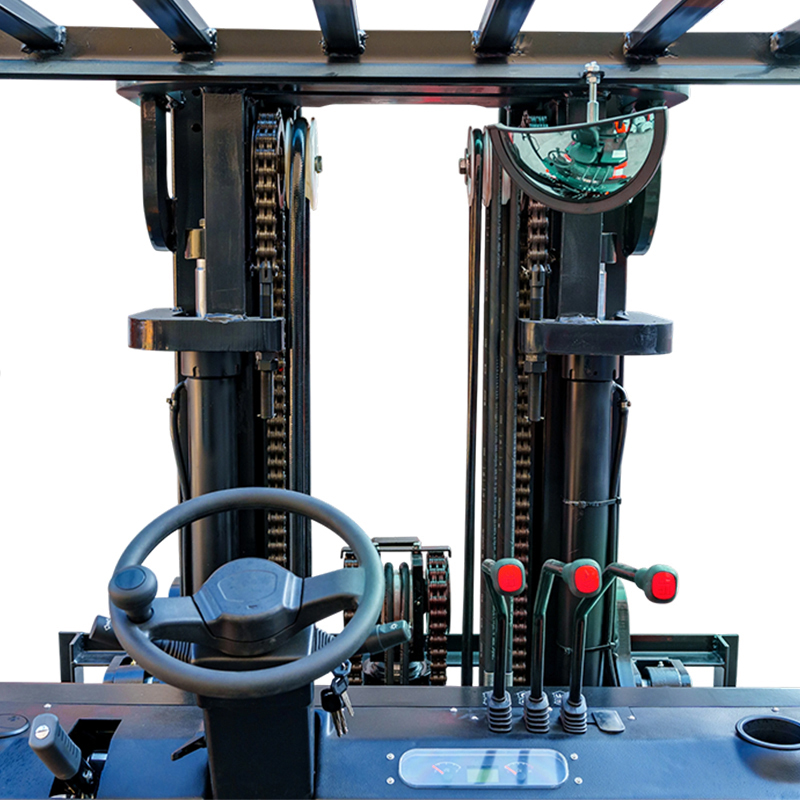

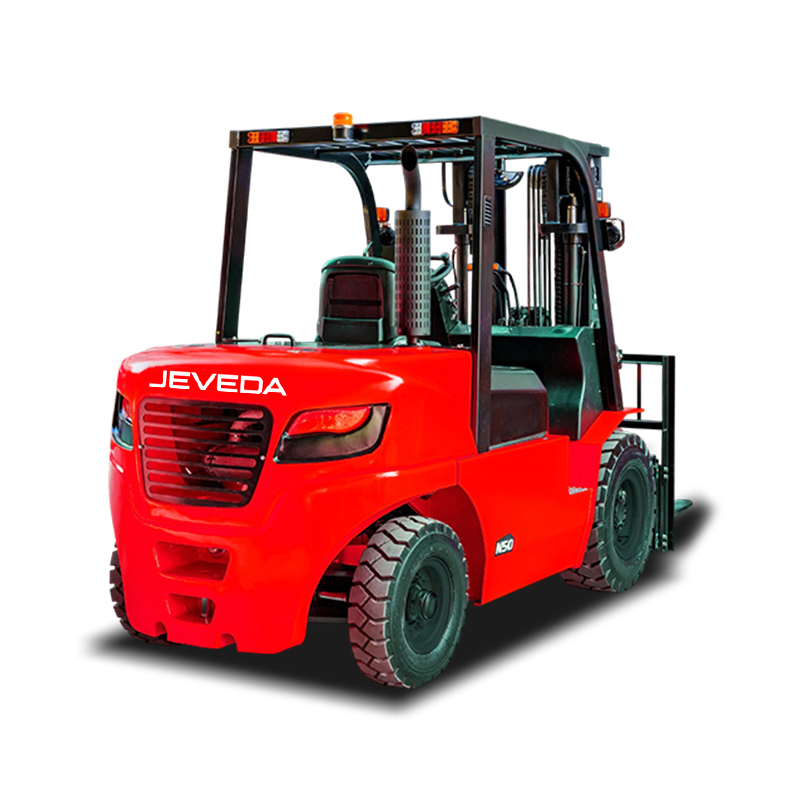

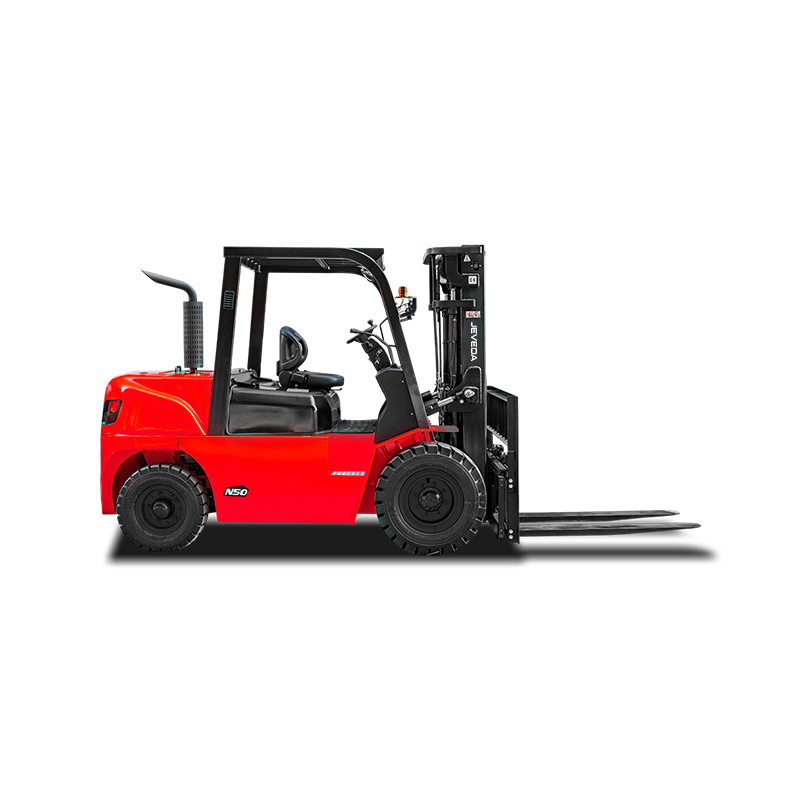

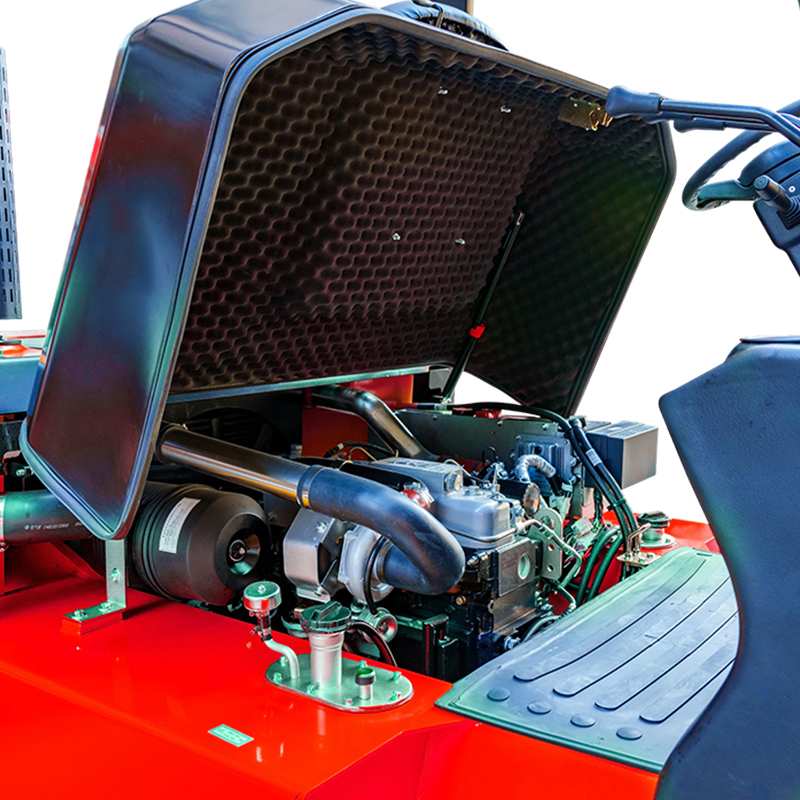

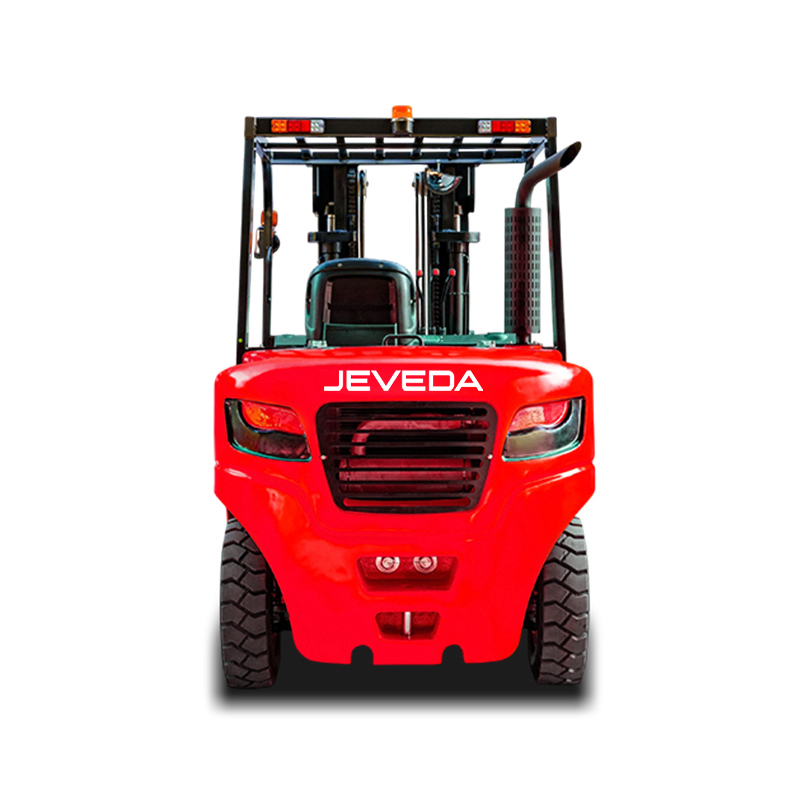

Diesel Forklift 4.0T-MINI5.0T

Diesel Forklift 4.0T-MINI5.0T

Product Overview: A specialized compact forklift designed to tackle heavier loads in space-restricted operating areas.
Key Features: It packs heavy-duty lifting capability into a condensed chassis design. This provides a significantly tighter turning radius without sacrificing the structural integrity required for heavy loads.
Ideal Applications: Ideal for narrow-aisle heavy manufacturing, mold workshops, or dense storage areas where standard large-tonnage forklifts cannot maneuver.

  • Diesel Forklift 4.0T-MINI5.0T
  • Diesel Forklift 4.0T-MINI5.0T
  • Diesel Forklift 4.0T-MINI5.0T
  • Diesel Forklift 4.0T-MINI5.0T
  • Diesel Forklift 4.0T-MINI5.0T
  • Diesel Forklift 4.0T-MINI5.0T
  • Diesel Forklift 4.0T-MINI5.0T
Contact Us
  • PARAMETER
    Model FD40T-NJM2 FD⁴5T- NJM2 FD50T-XNGP2 FD40T-NGP2 FD45T-NGP2 FD50T-XNJM2
    Rated Load Capacity Q(kg) 4000  4500  5000  4000  4500  5000
    Load Centre C(mm) 500  500  500  500  500  500
    Length to Face of Fork
    (without Fork)    		 L1(mm) 3170  3170  3170  3170  3170  3170
    Overall Width B1(mm) 1485  1485  1485  1485  1485  1485
    Overhead Guard Height H5(mm) 2260  2260  2260  2260  2260  2260
    Turning Radius
    (Outside)    		 Wa(mm) 2830  2830  2830  2830  2830  2830
    Travel Speed
    (No  Load)    		 Km/h 22  22  22  22  22  22
    Max.Gradeability
    (Full Load)    		 % 20  20  20  20  20  20
    Wheelbase Y(mm) 2000  2000  2000  2000  2000  2000
    Total Weight Kg 6305  6505  6805  6305  6505  6805
    Engine Model EURO III EURO III EURO III EURO III EURO III EURO III
