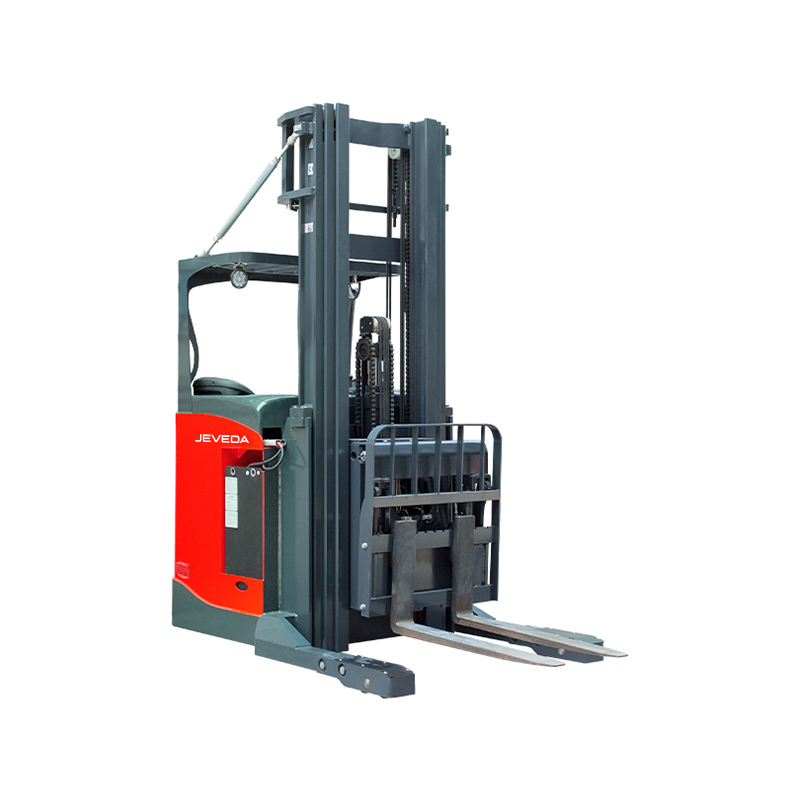

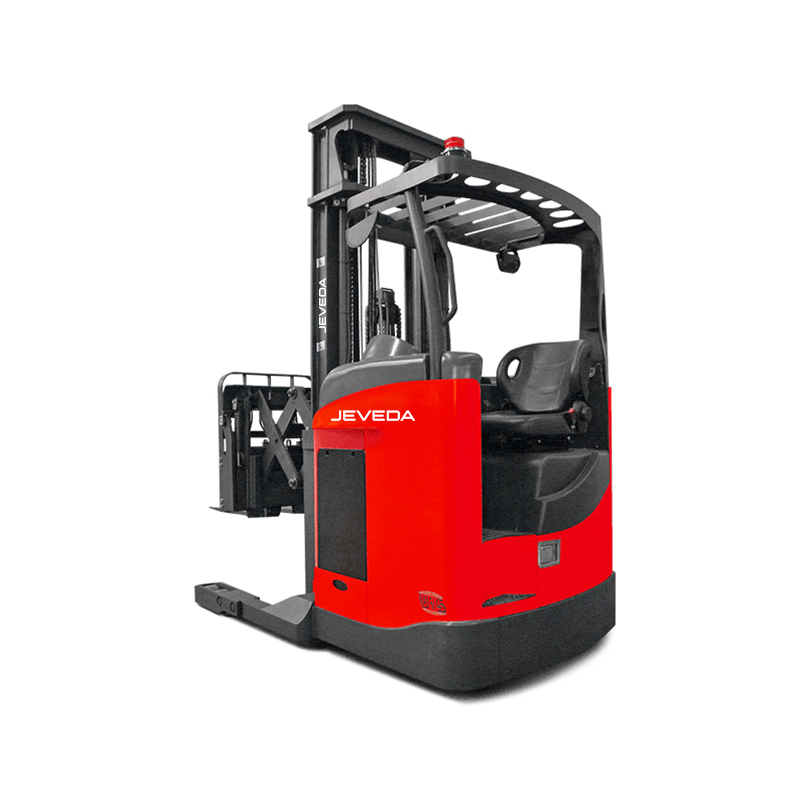

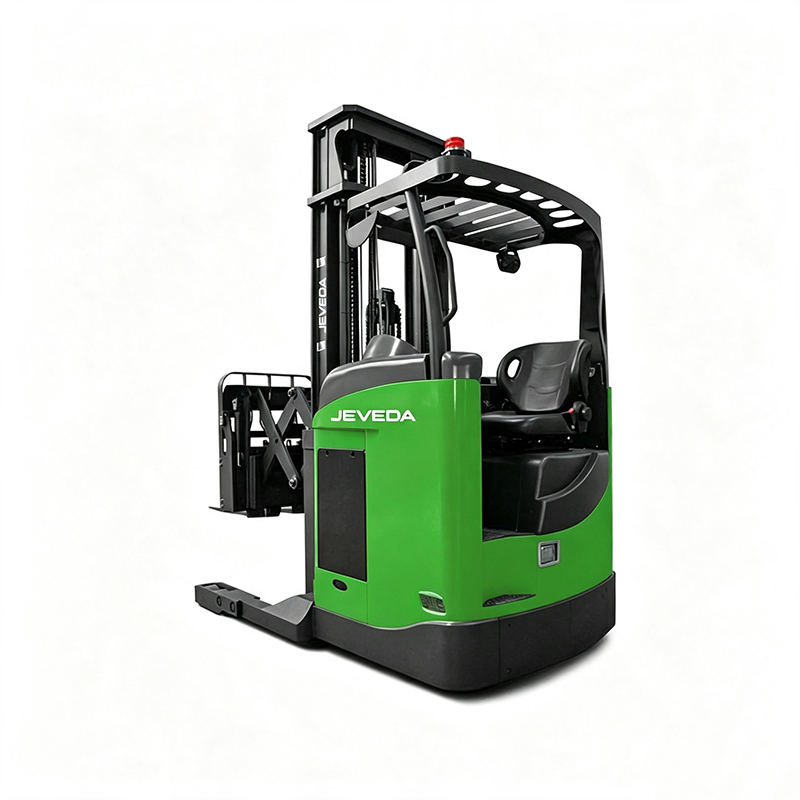

Home / Products / Forklift Truck / Dual-Depth High Reach Truck

Custom Forklift Truck

A forklift is a self-propelled industrial special equipment equipped with a mast and forks, designed for material stacking and short-distance in-site transportation. It greatly improves logistics efficiency. JEVEDA’s forklift product lineup covers internal combustion forklifts, electric forklifts, and warehouse forklifts to meet diverse operational needs.

Forklift Truck
  • PARAMETER
    Specifications 1  Manufacturer Jeveda
    2  Engine Model FBRS15-KUQZ2
    3  Power Source Battery
    4  Drive Type Seated
    5  Rated Lifting Capacity Q(kg) 1500
    6  Load Center Distance C(mm) 500
    7  Lifting Height H3(mm) 6000
    8  Free Lifting Height H2(mm) 200
    9  Fork Dimensions L/W/T(mm) 920×120×35
    10  Mast Tilt Angle Deg 3°/5°
    Dimensions 11  Overall Length L1(mm) 2752
    12  Overall Width B1(mm) 1450
    13  Mast Height (Lowered) H1(mm) 2950
    14  Maximum Mast Height (Including Guard Rail) H4(mm) 7045
    15  Overhead Guard Height H5(mm) 2205
    16  Minimum Turning Radius Wa(mm) 2070
    17  Ground Clearance H6(mm) 50
    18  Guard Rail Extension Distance Xmm 920
    19  Wheelbase Y(mm) 1750
    20  Front Track Width B2(mm) 1300
    21  Minimum Right-Angle Stacking Aisle (1200x1000 pallet, forks positioned 1200mm apart) Ast(mm) 3250
    22  Minimum Right-Angle Stacking Aisle (800x1200 pallet, forks positioned 800mm apart) Ast(mm) 3325
    23  Minimum Right-Angle Aisle Width (Unloaded) Ast(mm) 3055
    Performance 24  Travel Speed (Fully Loaded) km/h 9.0
    25  Travel Speed (Unloaded) km/h 9.5
    26  Lifting Speed (Fully Loaded) mm/s 240
    27  Lifting Speed (Unloaded) mm/s 360
    28  Net Weight (including battery) Kg 4060
    29  Battery Weight Kg 756
    30  Front Wheels × 2 (Solid polyurethane tires) 125x75x4
    31  Drive Wheel × 1 (Solid polyurethane tire) 343x135
    Drive 32  Drive Motor Kw 6
    33  Lift Motor Kw 11
    34  Battery V/Ah 48/420
    35  Steering System Electronics
    36  Service Brake Electromagnetism
    37  Controller Type AC
    38  Controller Manufacturer ZAPI
    39  Operating Pressure Mpa 16
