Skid Loader
The skid steer loader is compact, flexible construction machinery with zero-turn capability and quick attachment replacement, ideal for tight-space work. Its biggest advantage is multi-functionality: different attachments enable diverse operations to cut costs on multiple dedicated machines. It is widely used in municipal engineering, construction, farms and ranches for site cleaning, material handling and pen tidying; electric versions run quietly and won’t frighten animals.

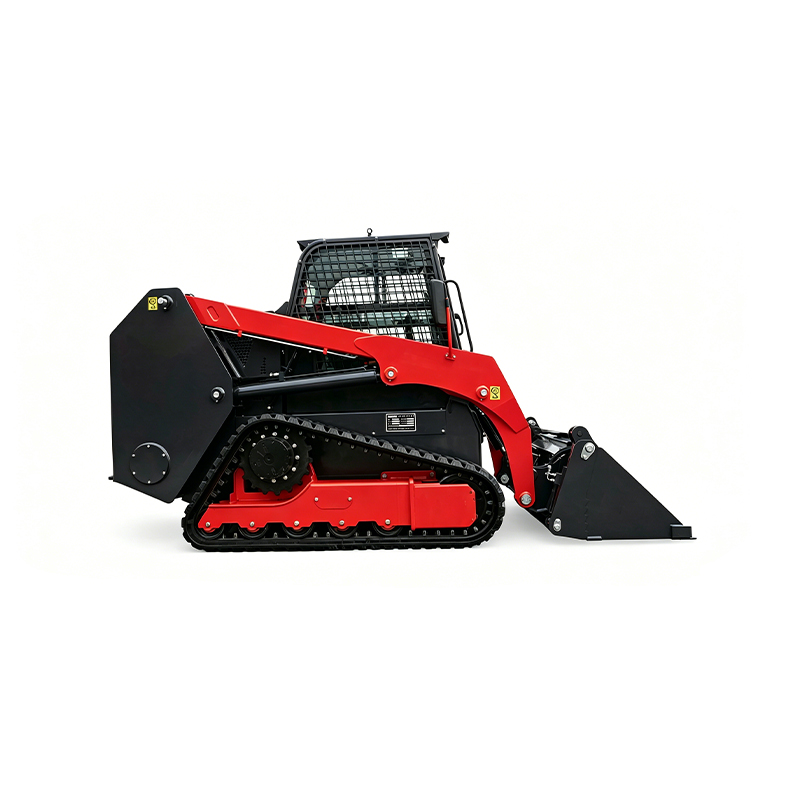

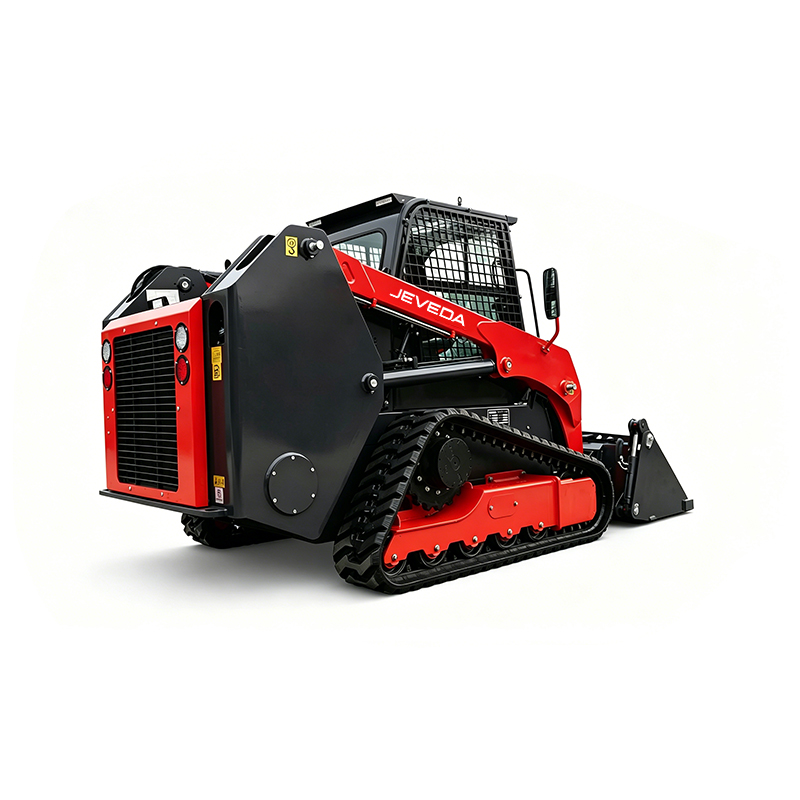

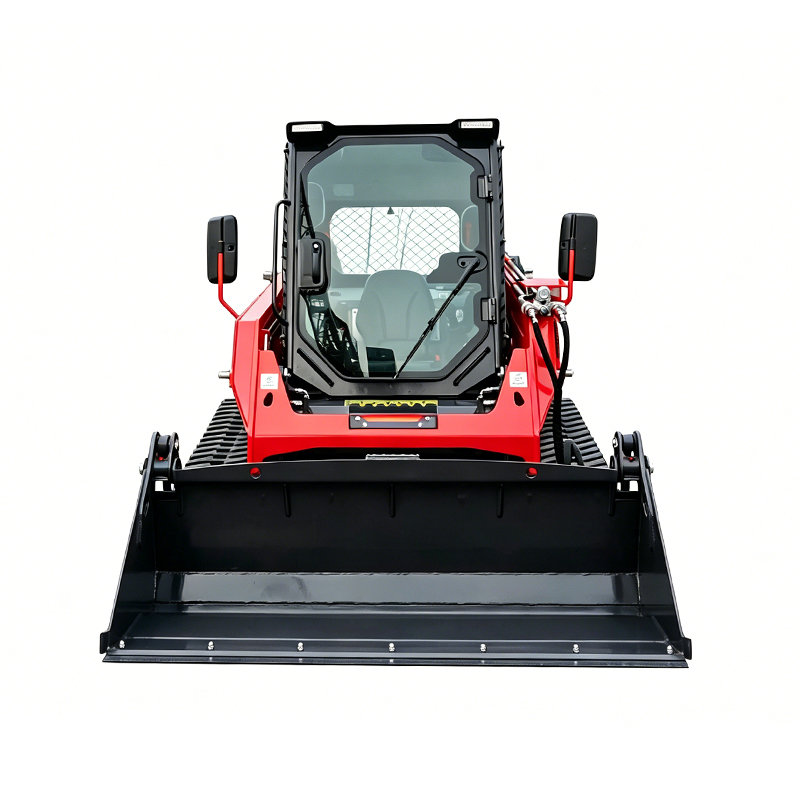

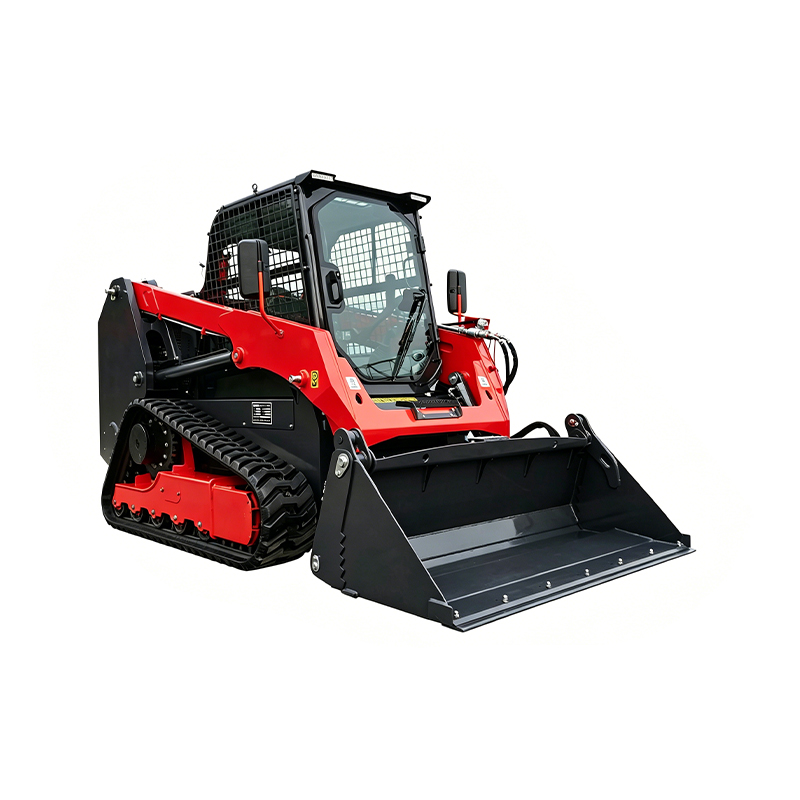

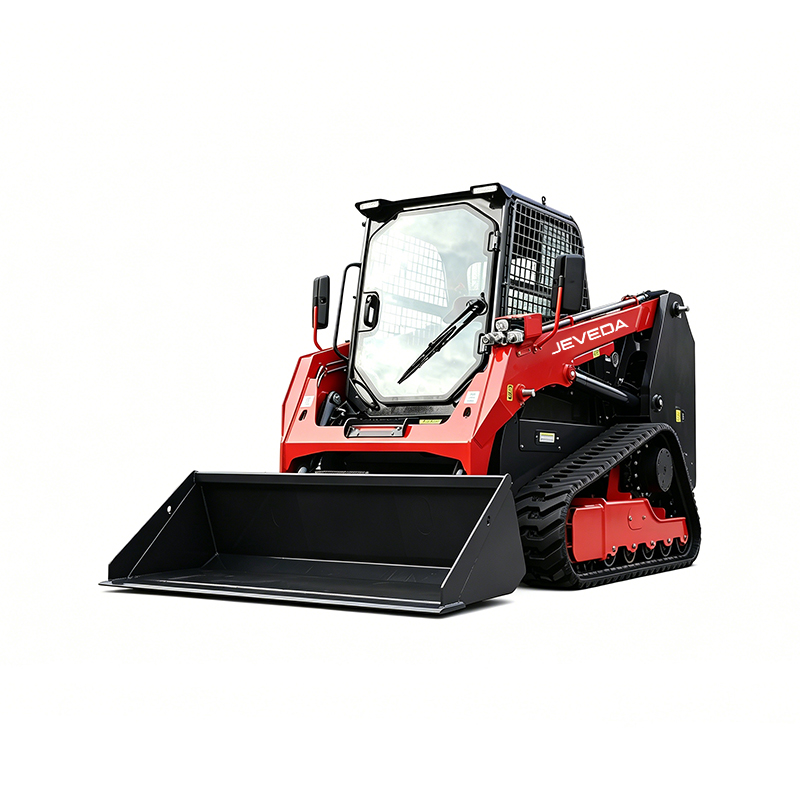

Heavy-Duty Model: With a maximum load capacity of 1,300 kg, this model utilizes a crawler-track system, offering exceptional off-road capability. Boasting advantages such as an extensive operating range and strong adaptability to various terrains, it is widely utilized across the construction, agricultural, and industrial sectors.
| PRODUCT SPECIFICATIONS | |||
| Model | JS1300 | ||
| THREE NUMBERS FOR THE ENGINE | Engine Model | EURO III | |
| Brand | WEICHAl | ||
| Power(kw) | 74(National III)74(National IV) | ||
| Number of cylinders | 4 | ||
| Fuel | Diesel fuel | ||
| PRODUCT SPECIFICATIONS | Working height-full ift (A) | 4390(mm) | |
| Bucke t bottom height-full lift(C) | 3220(mm) | ||
| Total length-with bucket(E) | 3805(mm) | ||
| Flip down angle-full lift(G) | 38(°) | ||
| Discharge distance-full ift(J) | 470(mm) | ||
| Upward inclination angle(L) | 24(°) | ||
| Track center distance(N) | 1600(mm) | ||
| Departure angle(Q) | 30(°) | ||
| Overall width-without bucket(S) | 1920(mm) | ||
| Turning radius-with bucket(X) | 2400(mm) | ||
| Turning radius-tail (Z) | 1800(mm) | ||
| Articulation height-fullift(B) | 3440(mm) | ||
| Height of overhead guard(D) | 2130(mm) | ||
| Overall length-without bucket (F) | 3035(mm) | ||
| Discharge height-full lift(H) | 2688(mm) | ||
| Inclination angle-full lift(K) | 96(°) | ||
| Track ground contact length(M) | 1600(mm) | ||
| Ground clearance(P) | 225(mm) | ||
| Bucket width(R) | 1880(mm) | ||
| Tail length(W) | 815(mm) | ||
| Turning radius-without bucket (Y) | 1550(mm) | ||
| HYDRAULICELECTRICALSYSTEM | Standard hydraulic flow rate of attachments | 85(L/min) | |
| Optional high hydraulic flow | 135(L/min) | ||
| Maximum oil supply pressure for accessories | 21(Mpa) | ||
| Fuel tank capacity | 100(L) | ||
| Hydraulic oil tank capacity | 100(L) | ||
| Operating voltage | DC24(V) | ||
| Operation method | Pilot hydraulic control | ||
| BASIC TECHNICAL PARAMETERS | Rated load | 1300(kg) | |
| Tipping load | 2200(kg) | ||
| Operating weight | 4350(kg) | ||
| Maximum driving speed | 6/9(km/h) | ||
| Tire specifications | 320 | ||
| Standard bucket | 72" | ||
| Bucket width | 1880(mm) | ||
| Flat pack capacity | 0.44(m3) | ||
